Ship Weight:
|
9.80 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8544.42.20.00 |

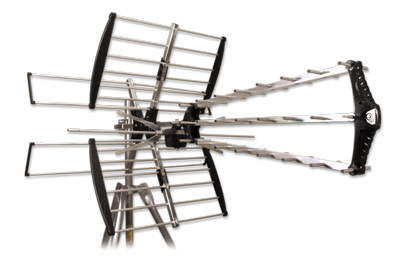

Fringe VHF/UHF/HDTV Outdoor Antenna - Highly rugged, 28 element directional antenna is engineered to receive BOTH VHF-Hi and UHF signals for digital and high definition television broadcasts. It is especially useful in areas where digital broadcasts still exist on VHF channels. Corner Yagi design provides exceptional directivity and gain.
Features:
- Triple boom for exceptional signal gain
- Exclusive snap open design for greatly reduced installation time
- Single combined VHF/UHF, 75ohm female "F" connection
- Heavy duty construction with rugged mast clamps and associated hardware
- Overall length: ~45 inches
VHF Specifications:
- Frequency range: 174~230MHz
- Max gain: 10dB
- Max front/back ratio: 16dB
- Horizontal beam width: 66 degrees
UHF Specifications:
- Frequency range: 470~862 MHz
- Max gain: 14dB
- Max front/back ratio: 30dB
- Horizontal beam width: 43 degrees
Assembled dimensions:
- Overall length = ~45"
- Maximum width = 32.5"
- Maximum height = 27.25"
NOTE: Mast (pole) not included. See related products at RIGHT for suitable mounting pole. Your TV MUST have a built-in TV tuner to receive “over-the-air†TV signals. Please consult your TV manual
