HDTV Off-Air UHF/VHF Antenna, Full Sized, Roof/Attic Mount, up to 60 Miles


 Lengths Available: ea, ea, ea, ea, ea, ea, ea,
 Colors Available:
 Part Numbers this model: NW-55W7741, NW-25AC5066, NW-25AC5067, NW-88W2140, NW-29X0161, NW-71Y5463, NW-84Y7953,

 Sales Category: Antennas  Wire Gauge (AWG): Not Specific / Not Applicable
 Connector A: *Not Applicable*  Specification:
 Connector B: *Not Applicable*  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: EA
# Positions: Shielding:
Convert From/To: Type:

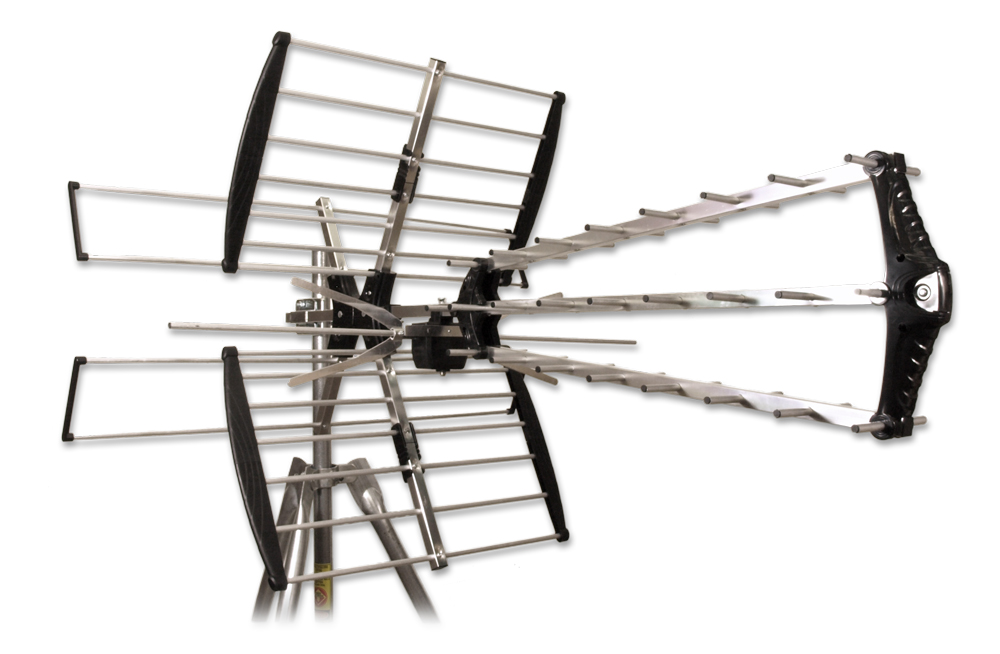

Fringe VHF/UHF/HDTV Outdoor Antenna - Highly rugged, 28 element directional antenna is engineered to receive BOTH VHF-Hi and UHF signals for digital and high definition television broadcasts. It is especially useful in areas where digital broadcasts still exist on VHF channels. Corner Yagi design provides exceptional directivity and gain.

Features:
  • Triple boom for exceptional signal gain
  • Exclusive snap open design for greatly reduced installation time
  • Single combined VHF/UHF, 75ohm female "F" connection
  • Heavy duty construction with rugged mast clamps and associated hardware
  • Overall length: ~45 inches
    VHF Specifications:
  • Frequency range: 174~230MHz
  • Max gain: 10dB
  • Max front/back ratio: 16dB
  • Horizontal beam width: 66 degrees
    UHF Specifications:
  • Frequency range: 470~862 MHz
  • Max gain: 14dB
  • Max front/back ratio: 30dB
  • Horizontal beam width: 43 degrees


Assembled dimensions:
  • Overall length = ~45"
  • Maximum width = 32.5"
  • Maximum height = 27.25"


NOTE: Mast (pole) not included. See related products at RIGHT for suitable mounting pole. Your TV MUST have a built-in TV tuner to receive “over-the-air” TV signals. Please consult your TV manual


NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
