CAT8 (Shielded) S/FTP Cable Selection Matrix

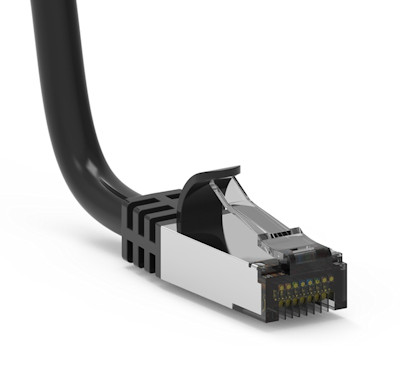

Specifications and Details: Cat 8 26AWG Ethernet Network Cables are capable to reach up to 40Gbps transfer speeds and up to 2GHz bandwidth using copper conductors and RJ45 connectors. Cat8 Ethernet Cables are the first future proof, cost effective, high performance solution, besides Cat 8 patch cables are backwards compatible with all categories Cat.5E, Cat.6, Cat6A, Cat.7. Performance conforms to proposed Cat.7 Class F standards (ANSI/TIA-568-B.2-1) Complaint with TIA/EIA standard by UL and ETL, RoHS Compliant 26AWG stranded copper wire x 4 pairs UL, cUL, and ETL Listed RoHS 2.0 compliant Double shielded: Each pair foil shielded / 4 pair braid shielded 50 micron gold plated RJ45 shielded plug Suitable for 10Gbase-T networks Max data rate: Up to 40Gps / 2000 Mhz (2Gb) Wiring: T568B standard Molded shielded snugless boot Currently, this cable type is available only in limited colors.
