| Connector A: | Fiber Optic LC Connector |
| Connector B: | Fiber Optic SC Connector |
| Color: | Aqua |
|
Ship Weight:
|
0.35 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

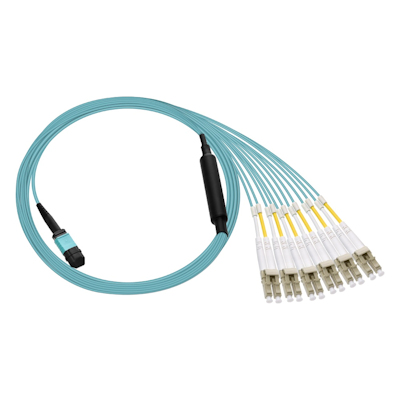

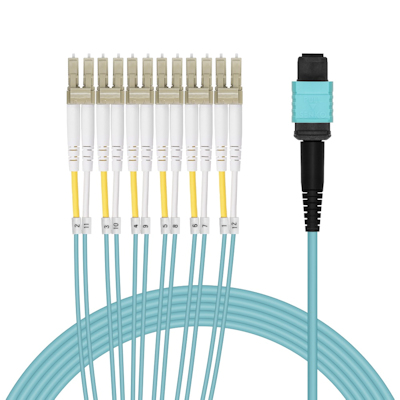

MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Specifications:- Connector Type: MPO Female to to 6-LC
- Polishing: UPC
- Return Loss: 20 dB
- Insertion Loss: 0.35dB (0.15dB Typ.)
- Jacket OD: 3mm
- Fiber Mode: OM4 50/125m
- 40/100G Ethernet Distance: 150m at 850nm
- 10/100G Ethernet Distance: 400m at 850nm
- Jacket Material: OFNR
- Temperature Range: -20C +70C
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
