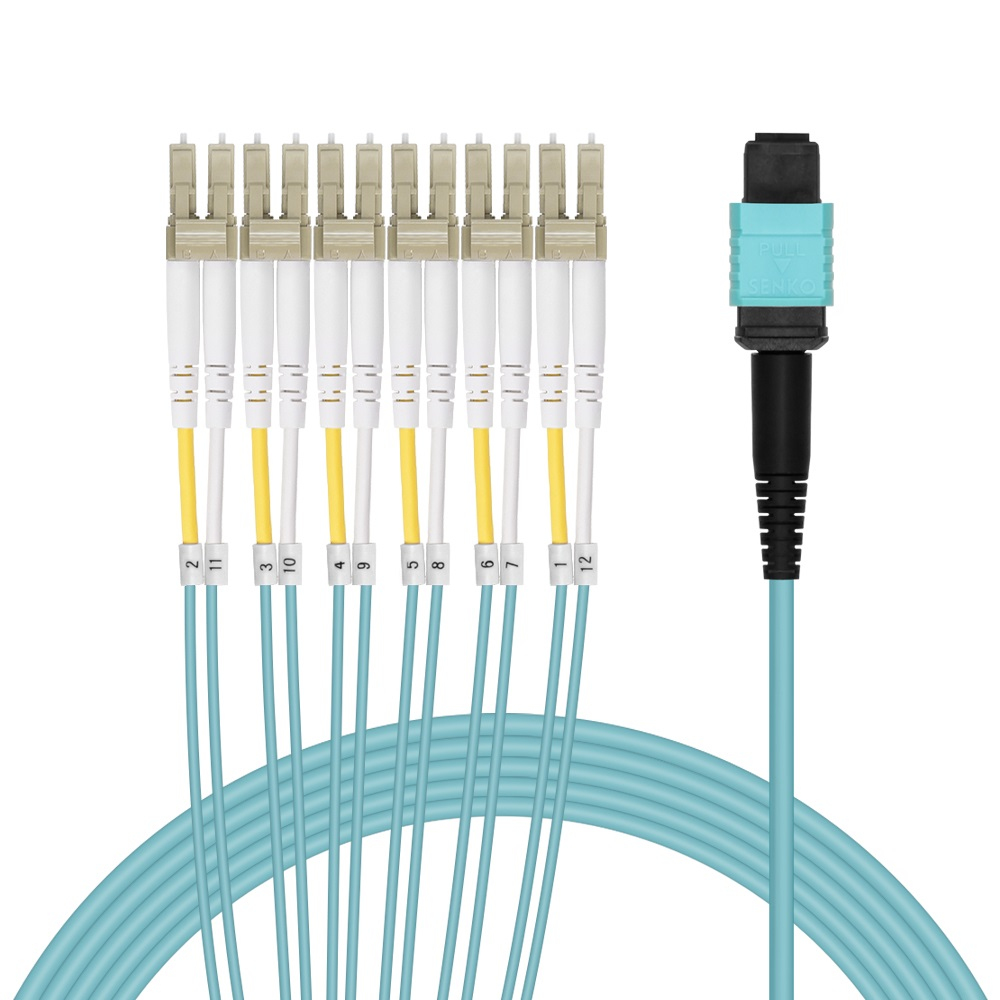

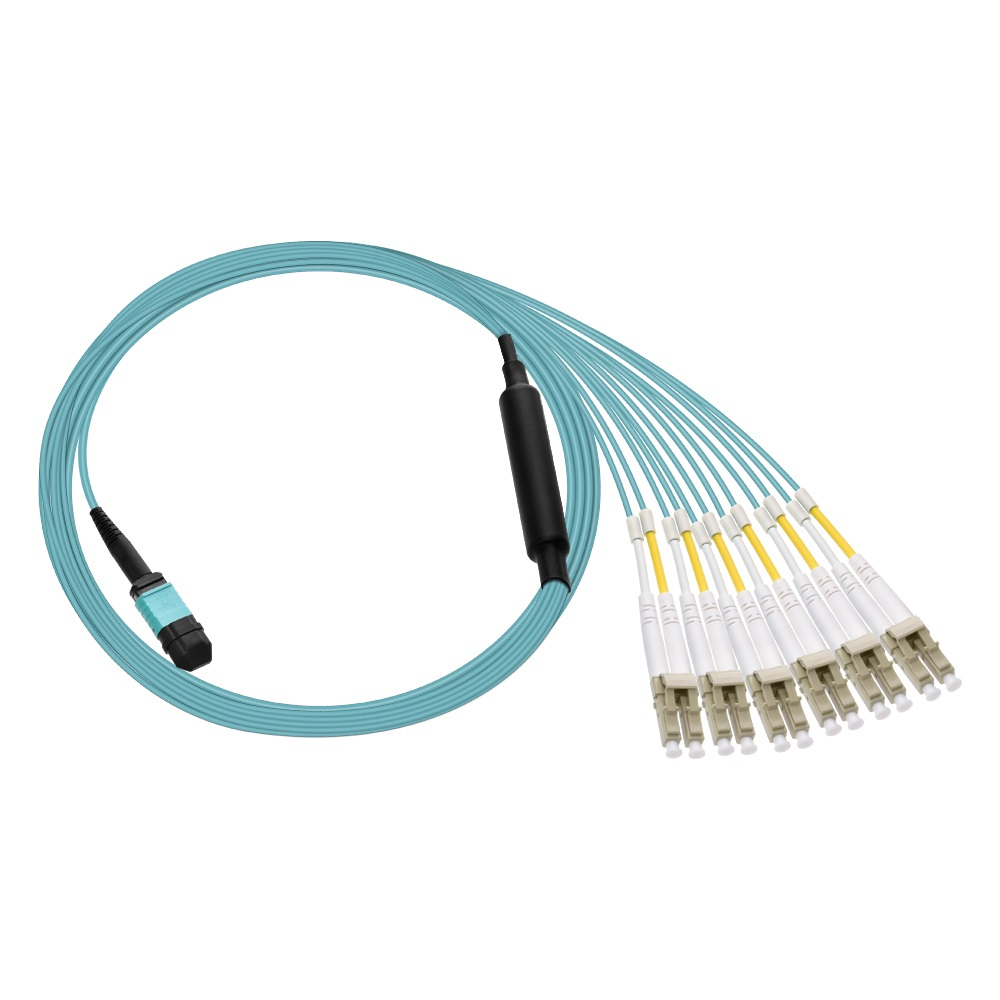

5 Meter MPO OM4 to 12-Fiber to 6-LC Duplex Breakout Aqua OFNR
|
|
|
|
|
|
|
Lengths Available: |
3m, 5m, |
|
Colors Available: |
|
|
Part Numbers this model: |
BE-105547, BE-105548, |
| |
|
|
Sales Category: |
Fiber Optic Jumpers |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
Fiber Optic LC Connector |
Specification: |
|
|
Connector B: |
Fiber Optic SC Connector |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
5 M |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
MPO trunk cable is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With MPO connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
Specifications:- Connector Type: MPO Female to to 6-LC
- Polishing: UPC
- Return Loss: 20 dB
- Insertion Loss: 0.35dB (0.15dB Typ.)
- Jacket OD: 3mm
- Fiber Mode: OM4 50/125m
- 40/100G Ethernet Distance: 150m at 850nm
- 10/100G Ethernet Distance: 400m at 850nm
- Jacket Material: OFNR
- Temperature Range: -20C +70C
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
|
