| Connector A: | Coax F-Type Female |
| Connector B: | Coax F-Type Female |
|
Ship Weight:
|
0.63 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

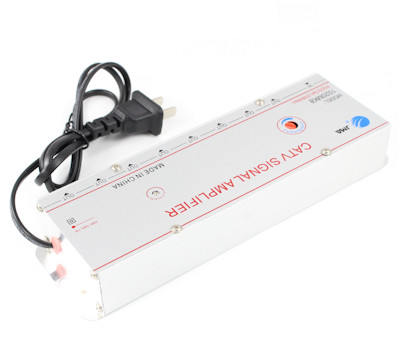

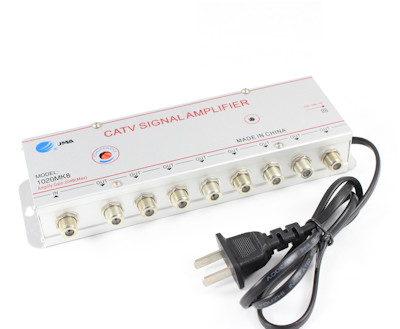

This cable drop amplifier sends CATV signals to up to eight television sets with an internal 20dB signal amplifier to compensate for losses caused by the split and additional cable length. An adjustable GAIN screw allows for adjustment depending on number of cable runs and desired gain strength. This unit is designed for INDOOR USE ONLY.
Features and Specifications:- LED power indicator, confirming proper power source connection
- Bandwidth Range: 45-862Mhz
- Total Gain: 20db +-2
- Gain Adjustment: 0-20dB
- Power Consumption: 2 Watts, 120v
- Number of Outputs: 8 Coax
- Dimensions: 160x70x31
