Coax Splitter: 8 Way 45-862Mhz, Amplified 20dB, Powered
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
|
|
Part Numbers this model: |
FE-JM-1020MK8 |
| |
|
|
Sales Category: |
RG6 Coax Cables and Adapters |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
Coax F-Type Female |
Specification: |
|
|
Connector B: |
Coax F-Type Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8525503035 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
EA |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |

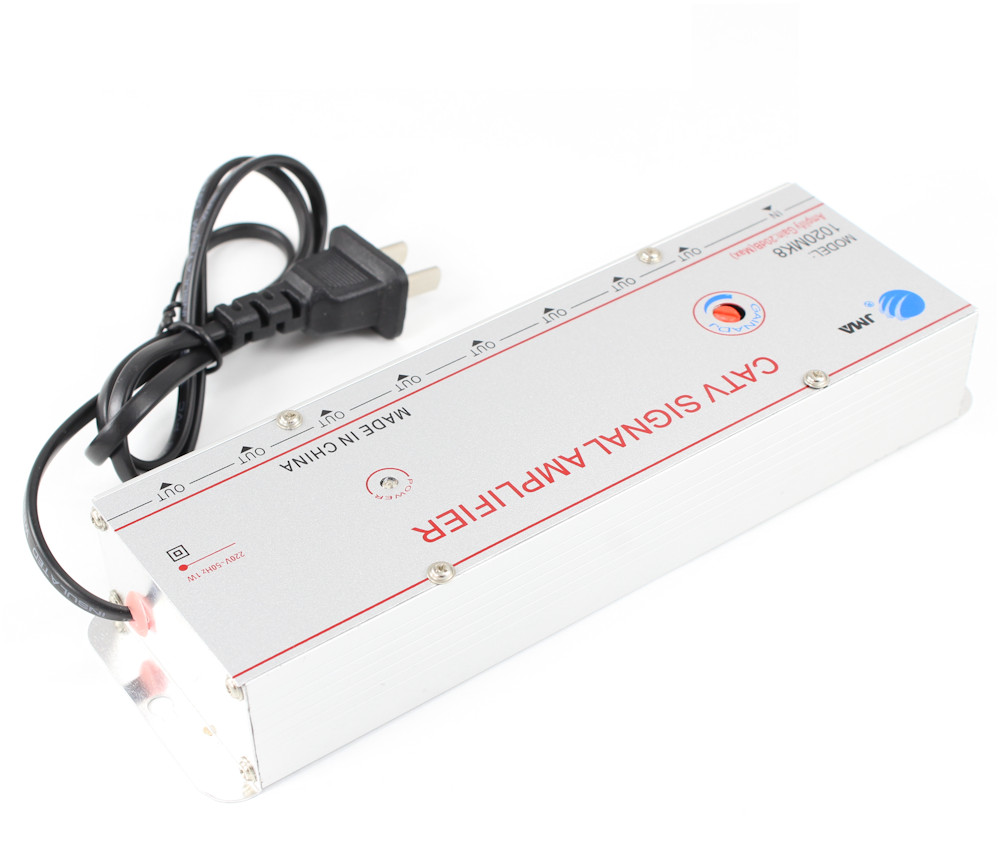

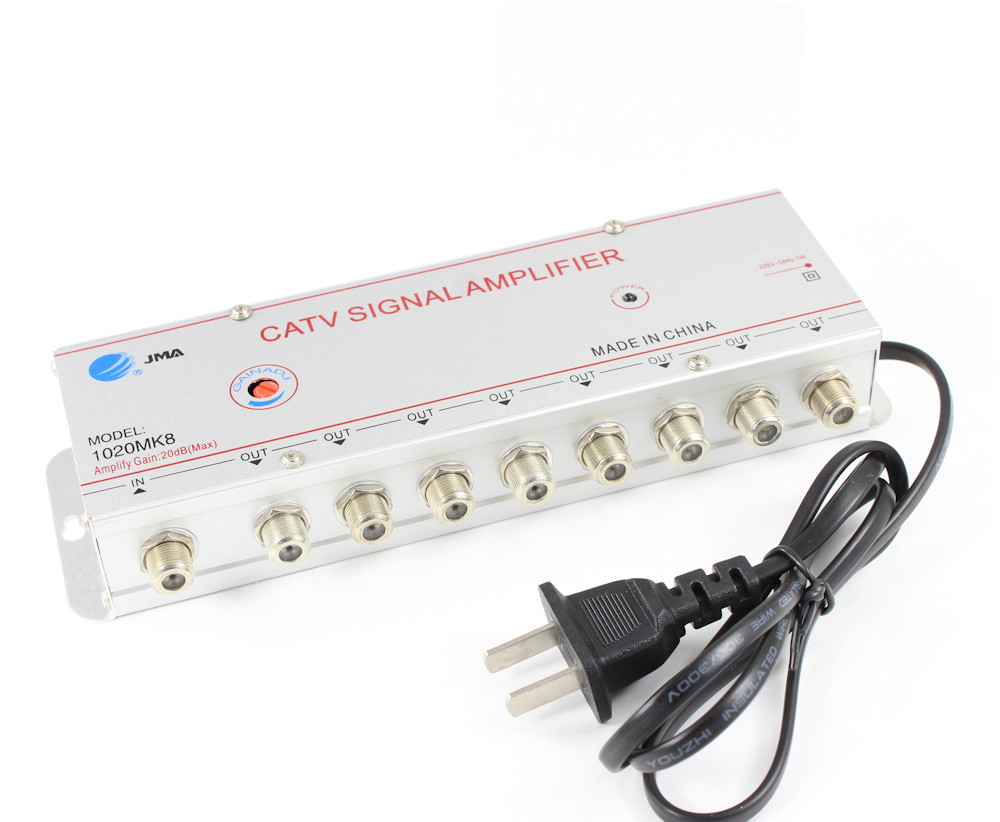

This cable drop amplifier sends CATV signals to up to eight television sets with an internal 20dB signal amplifier to compensate for losses caused by the split and additional cable length. An adjustable GAIN screw allows for adjustment depending on number of cable runs and desired gain strength. This unit is designed for INDOOR USE ONLY.
Features and Specifications:- LED power indicator, confirming proper power source connection
- Bandwidth Range: 45-862Mhz
- Total Gain: 20db +-2
- Gain Adjustment: 0-20dB
- Power Consumption: 2 Watts, 120v
- Number of Outputs: 8 Coax
- Dimensions: 160x70x31
|
