| Color: | Black |
|
Ship Weight:
|
0.06 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

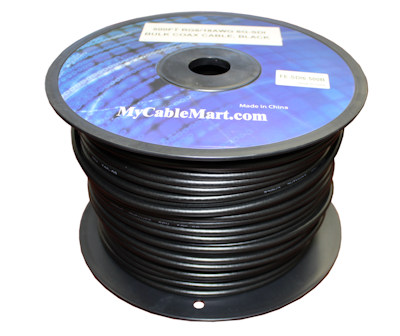

This product is sold
PER FOOT. Order the number of feet that you need, and we will cut this TOTAL QUANTITY LENGTH for you! BNC/SDI terminators NOT included (sold separately).
This specialized 6G-SDI (Serial Digital Interface) standards to support 6 Gbps, and maximum resolutions to 4Kx2K (2160P30 YUV 4:2:2) at 30Hz. Higher resolutions MAY be possible with suitable hardware compression using your equipment. The 6G-SDI standard is 100% backward compatible with the SD-SDI, ED-SDI, HD-SDI, and 3G-SDI specifications (SMPTE 259M, 344M, 292M, 373M, 424M, and the 6G-SDI standard of SMPTE ST-2081), but supports the faster 6Gbps speed needed for tomorrows 4Kx2K video/audio applications. Using 6G-SDI cabling instead of HD-SDI, or 3G-SDI provides the future-proofing you need!

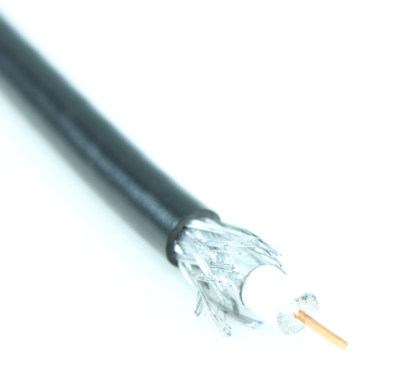

Specifications:- 6G-SDI RG6 Coaxial Cable
- Meets SCTE IPS-SP-001, UL1655, UL13, UL444
- RoHS 3 Compliant
- 18AWG bare solid copper core (1.0mm)
- Nominal Thickness: 0.07 inches
- Diameter from Shielding: 5.4mm
- Outer Insulation Diameter: 7.0mm
- Diameter from Dielectric: 4.8mm
- Braided and Foil shielded
- Temperature Rating: -20 to 60 C
- Impendence: +-3.0 Ohms 75
- Conductor DCR@20C: 28.6
- Capacitance: 15.5 pF/ft
- Performance: 1Mhz to 3000Mhz: 0.89 to 37.88 db/100m) - see PDF document for complete table
Pre-cut BULK CABLE is NOT returnable under any circumstances
