| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Male |
|
Ship Weight:
|
2.29 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Connect any Blu-Ray player, Satellite Box, Cable Box, DVD Player, Media Player, or ANY device accepting the standard HDMI connector. All our HDMI cables are manufactured to specific HDMI LLC standards and have passed stringent HDMI version 2.0 ATC
testing requirements.
These HIGH SPEED cables are ideal when used in combination with switches, splitters, wall-plates, as a partial HDMI segment when connecting devices to a receiver - and then from the receiver to your HDTV - when there is a need to minimize any resistance, and are an ideal solution for 4Kx2K (up to 30Hz) devices
Supports the following features that are included in the HDMI Version 2.0 specification:
- 4K x 2K Support - Supports to 4K @ 60Hz (4096x2160)
- HDMI Ethernet Channel - (HEC) Delivers Ethernet data interconnectivity to compatible devices through the HDMI port so you don't need extra cables to get extended features
- Audio Return Channel-(ARC) Allows the HDMI connection between a television and A/V receiver to transmit audio two ways, both upstream and downstream. This eliminates the need for a separate audio cable and ensures you maintain the high digital audio quality of HDMI
- Full 3D Support - If your source and receiving device support 3D, this cable will!
Cable Specifications:
- End Connector Dimension: 20.1mm W x 10.7mm H, Cable Thickness: 7.5mm
- CL-2 (Class 2) rated for in-wall installation
- High Speed bandwidth: 18 GigaBit/sec (Independently lab tested to HDMI v2.0 testing specifications)
- Gold Plated 1u (All 19 wires and Ground Shroud)
- Silver-plated (5u) PURE copper wire for maximum conductivity WITHOUT any harmful lead (RoHS)
- Copper Foil shielding to virtually eliminate any EMS interference

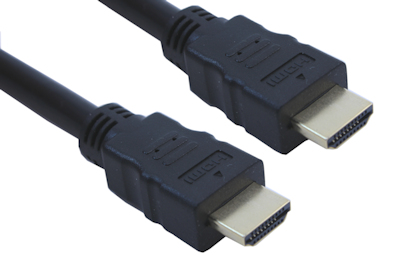

- 19 pin, Male to Male, Type A Connector
- Triple Shielded, EMI (Foil, braid, foil)
- No bulky, unnecessary ferrites cores
- UL / CSA listed (UL File #: E329703, Style: 20276), Max Temperature: 80 C
- Fully HDMI LLC / ATC Certified to Version 2.0 testing specifications.
