Connector A: | HDMI Standard Type A Male |
Connector B: | HDMI Standard Type A Male |
Ship Weight:
|
5.03 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8544.42.20.00 |

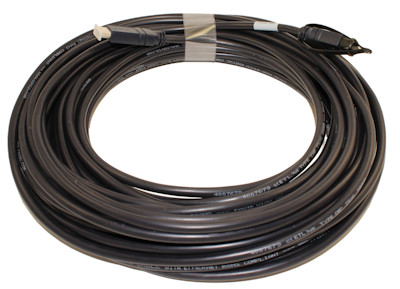

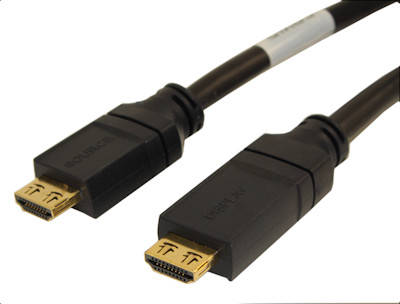

This uni-directional HDMI cables (one end of the cable is marked SOURCE, the other end DISPLAY) allows you to run long length HDMI runs into PLENUM SPACES.
HDMI Version 1.4A Specification
- HDMI Ethernet Channel
- Audio Return Channel (ARC)
- Full 3D Support
- Support for ANY TV refresh rates
Cable Specifications and Additional Features:
- Plenum Rated (UL Number: E197461B)
- Teflon/PVC jacket insulation is fire-retardant and is low-smoke rated PVC meeting National Fire Protection Assoc (NFPA) 90A and Article 800 of the NEC
- Wire Gauge: 24 AWG
- Built-in Equalizer/Booster at DISPLAY END
- Gold Plated 1u (All 19 wires and Ground Shroud)
- Silver-tinned PURE copper wire for maximum conductivity - without ANY harmful lead (RoHS)
- Triple Shielded, EMI (Foil, braid, foil)
- 100% Backward compatible with all previous HDMI versions
