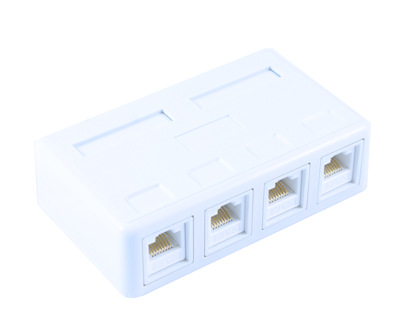

This Pre-Configured Unshielded Cat5E 4-Port Surface-Mount Box features four RJ45 female connectors as a fast, easy and cost-effective tool for expanding your Cat6 audio/video, voice or Ethernet network. The housing mounts practically anywhere, including a wall or baseboard, using the included mounting screws or double-sided adhesive tape.

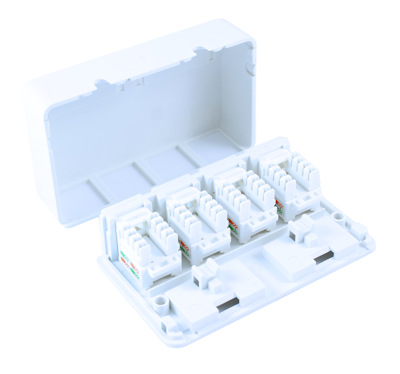

Just snap open the top cover to terminate up to four 22 - 26 AWG Cat6 copper cables using a standard 110 IDC punchdown tool. The termination blocks are color-coded for easy T568B wiring. Zip ties are included for neatly securing the cables to the Cat6 surface-mount box, which features rear routing slots to allow the box to be installed flush against a wall or ceiling.
Snap the cover back on, and connect up to four Cat5e cables to the pre-installed RJ45 keystone jacks with 50-micron gold-plated contacts for maximum conductivity and minimum data loss. This product offers great flexibility in placement, especially in applications where in-wall box and wire installation is impossible.
Specifications and Features:
- RJ-45 (CAT6) surface mounting block for baseboards or walls.
- Punch-down terminals for easy connection (punch-down tool recommended)
- Adhesive mounting pads (not shown on photo)
- Wire Ties
- 2 wood screws for baseboard mounting (not shown on photo)
- 4 Port RJ-45 Female
