Connector A: | USB Standard Type A Male |
Connector B: | USB Standard Type A Female |
Ship Weight:
|
0.10 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8544.42.20.00 |

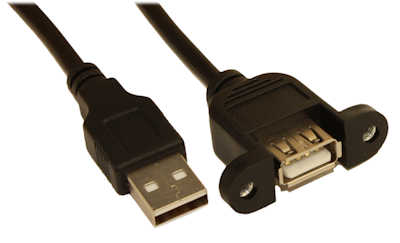

This is a PANEL MOUNT product. Supports USB speed up to 480Mbp.
Technical Specifications:- USB v2.0 compliant
- Supports Hi-Speed, 480 Mbps
- Connector A: USB 2.0 Male
- Connector B: USB 2.0 Female Panel Mount
- Panel Connector Dimension: 11.8mm Width, 38.0mm Height
- Panel Connector between bolt hole measurement: 29.0mm
- Shielded (Foil), 100% Copper (CU)
- 28AWG(7/0.12BC)*1P + 24AWG(7/0.2BC)*2C+AL+D
- Nickel plated conductors
- 2 Mounting bolts included
- Cable Outer Diameter: 4.5mm
- Color: Black
- RoHS-2 Compliant
