Build your OWN Keystone wallplate combination!
- Version 2.0 Tested Certified

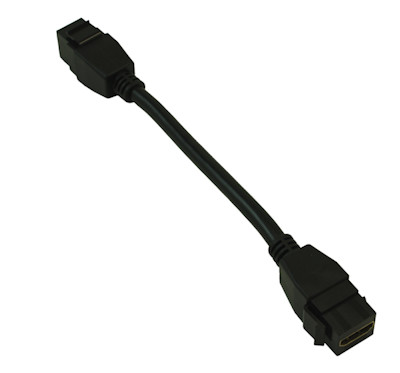

- Female HDMI on both front and back
- Flexible 8 inch 28AWG Cable allowing to exit the gang box in ANY direction
- BOTH ends have keystone molded ends allow product to be used as a "jumper" if desired
- Gold-plated connections
Important Note for 3D TVs and v2.0 Support of HDMI with Ethernet: Although these keystone inserts were originally manufactured and tested to meet ATC v1.4 specifications, our manufacturer has confirmed that they will ALSO meet any future HDMI revisions, including but not limited to v2.0. They are FULLY compable with 3D technologies. The use of COUPLERS or WALLPLATES with any HDMI circuit will add a small amount of resistance and may affect the ability to successfully transmit the required data rateMy Cable Mart Keystone WALL-PLATES and INSERTS all adhere to
NEMA standards. Keystone insert modules have a rectangular face of
14.5mm wide by
16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
