| Connector A: | HDMI Standard Type A Female |
| Connector B: | RCA/Phono Female |
|
Ship Weight:
|
0.52 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

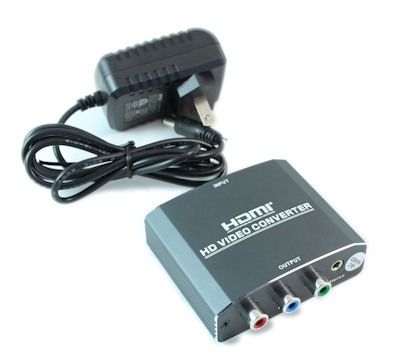

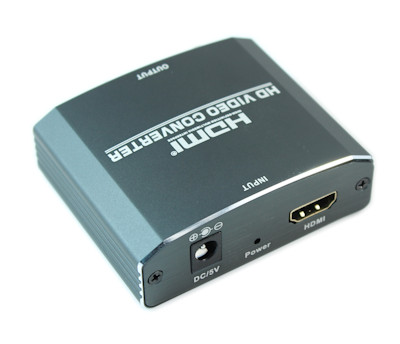

Devices converts digitcal HDMI input into analog YPbPr video with Left and Right audio signal. Allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional YPbPr monitors or projectors. Converter offers solutions for devices (such as 108P BluRay, Cable Box, and Satellite systems) that only offer an HDMI output, but your TV or project only have a COMPONENT VIDEO (YPbPr) input. All of your devices must supports HDCP 1.2. (Not compatible with 4Kx2K HDCP 2.2 devices)
FEATURES- Easy to Use: Install in seconds, no need of setting.
- Conversion: Complete HDMI into YPbPr video and R/L audio output.
- Support HDCP 1.2
- Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
- Supports Analog Video output up to UXGA and 1080p with 10-bit DAC
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Input connection: HDMI A female (19pin)
- Output connection: YPbPr & Left/Right Audio via 3.5mm Stereo Connector
- HDMI video input format: 480i/576i/480p/576p/720p/1080i/1080p
- YPbPr video output format: 480i/576i/480p/576p/720p/1080i/1080p
- Audio output format: 2 channel LPCM
- Vertical Frequency Range: 50/60Hz
- Input Video Amplifier Bandwidth: 1.65Gpbs/165MHz
- Size(W-H-D): 88mmW x 25.5mmH x 68mmD
- Weight (Net): 0.68kgs
- Operating Temperature: 0 ℃ to +70℃
- Operating Humidty: 10% to 85 % RH (no condensation)
- External Power Supply: 5V [email protected] (included)
- Power consumption (Max): 5W
