| Connector A: | RJ45 Ethernet Female |
| Connector B: | RJ45 Ethernet Female |
|
Ship Weight:
|
0.18 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8536.69.40.10 |
WARNING: The product, when used as directed, can allow for the use of a SINGLE ethernet cable to provide concurrent connectivity to two devices (such as 2 computers). This product is sold as a PAIR (2 units) and the pair MUST be used together and as directed to achieve the capabilities of providing 2 concurrent networked devices on your network

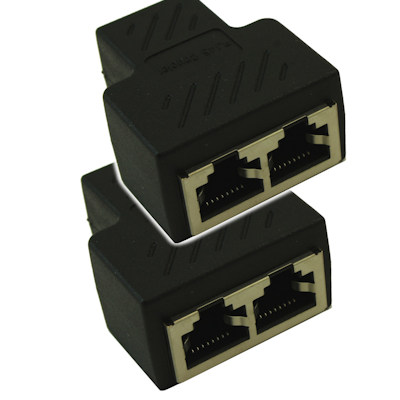

This product is sold as a PAIR (2 splitters) that MUST be used together. ONE splitter device (#1) is connected to a router (or networking switch) using TWO RJ45 ports. A SINGLE ethernet cable is then connected from splitter #1 to the second splitter (#2). 2 concurrent network ports are then available at splitter #2. Please see the PDF tech doc for a diagram and pin-out for the suitability of this product on your network.
When using the LAN splitter 1 to 2 alone, it can be used as a network splitter. When used in a PAIR, only one network cable is needed between two LAN splitters. One internet cable splitter connects two different network signal sources, and the other splitter ethernet connects two network devices to achieve synchronization between two computers or other network networking. This ethernet splitter 1 to 2 is compatible with cat5 / cat5e / cat6 / cat6e / cat7 network environment, the network operation connection between wireless network equipment terminals, such as switchboards, hubs, routers, switches, set-top boxes, ADSL, digital TV, etc.
Features and Specifications- Gold plated conductors
- CAT6 Straight Through Wiring (Backwards compatible to CAT5E)
- Meets CAT6 1Gb standards

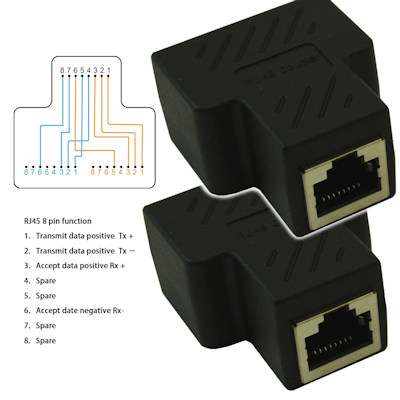

- Pin-outs: See IMAGE 2 for the pin-outs of this product
- 1 RJ-45 standard female connector to 2 RJ-45 female connectors
