18inch USB 2.0 EXTENSION Micro-B 5 pin to A Female PANEL MOUNT Cable

4 reviews

18inch USB 2.0 EXTENSION Micro-B 5 pin to A Female PANEL MOUNT Cable

Price: $3.10 each

FE-ACB5-PM-18IN

QUANTITY: In Stock

Qty Discount Pricing
2 - 5	6 - 10	11 - 30	31 - 50	51 - 100	101 - 200	201+
$2.79	$2.61	$2.46	$2.35	$2.28	$2.23	$2.18

Connector A:

USB Type Micro-B Male

Connector B:

USB Standard Type A Female

Free Shipping on Orders $100+ for qualifying products,
Learn More.

Connector A:	USB Type Micro-B Male
Connector B:	USB Standard Type A Female
Ship Weight:	0.09 lbs
Warranty:	Ltd Lifetime
Tariff Code:	8544.42.20.00

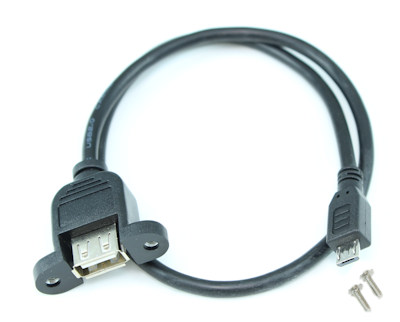

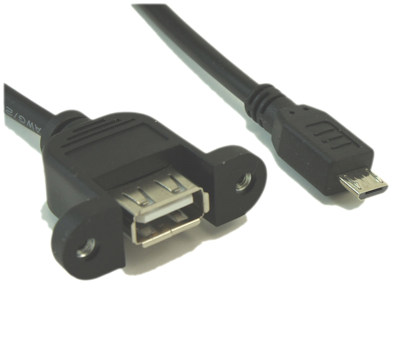

This is a PANEL MOUNT product. Supports USB speed up to 480Mbp. Micro-B Male connector is commonly found on many android phone devices. 2 mount screws included.

Technical Specifications:

USB v2.0 compliant
Supports Hi-Speed, 480 Mbps
Connector A: USB 2.0 Micro-B 5pin Male
Connector B: USB 2.0 Female Panel Mount
Panel Connector Dimension: 11.8mm Width, 38.0mm Height
Panel Connector between bolt hole measurement: 29.0mm
Shielded (Foil), 100% Copper (CU)
28AWG(7/0.12BC)*1P + 24AWG(7/0.2BC)*2C+AL+D
Nickel plated conductors
2 Mounting bolts included
Cable Outer Diameter: 4.5mm
Color: Black
RoHS-2 Compliant

Product Reviewed 4 times. Only most recent 100 shown

Rating Stars	Reviewer	Date
	Aaron W From Otsego, MN	05/10/23
	William C From Niagara Falls, NY	02/26/20
	Replaced a series of connections of female usb type a to male usb type b with connector from female usb type b to female usb type a, and another cord of male usb type a to male usb micro i got from a 3d printer kit
	Kiel P From Huntsville, AL	03/01/19
	Products arrives extremely quickly and in good condition. They were of sound quality as well.
	Mark Z From Glen Burnie, MD	05/11/18
	A+
