| Connector A: | USB Type Micro-B Male |
| Connector B: | USB Type Micro-B Female |
| Color: | Black |
|
Ship Weight:
|
0.16 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

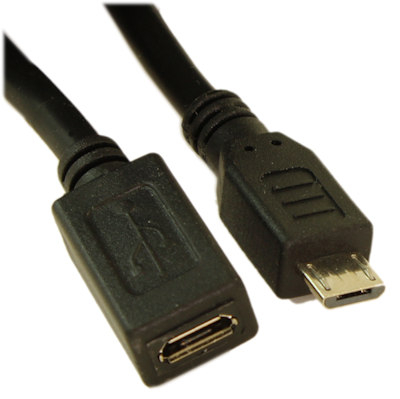

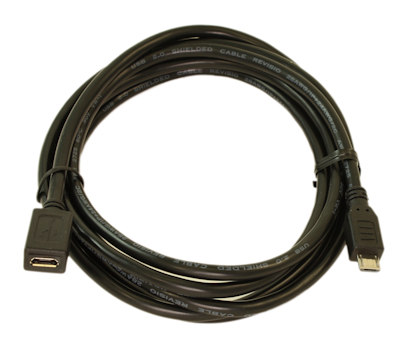

USB 2.0 Micro USB 5 pin Male to Female EXTENSION Cable, Black. This Micro USB B 5pin extension Cable provides one Micro USB B MALE connector, and one Micro B FEMALE to extend the length of an existing Micro-B 5 pin cable. This cable uses a much thicker 24AWG (for charge) for is conductor cables to ensure proper data transfer and optimal charging.
Cable Specifications:
- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
- Wiring Diagram: 1-1, 2-2. 3-3, 5-5, Ground-Ground (Pin 4 NOT connected)
- Connector 1: Micro-B 5 pin MALE
- Connector 2: Micro-B 5 pin FEMALE
- Meets the USB 2.0 data specifications
- Shielding and Jacket Type: TC / braid 32*0.1mm
- Wire: CU (Pure Copper)
- Outer Cable Diameter: 3.5mm.
TECH NOTE:Cable compatible with most smart-phones and Blackberry phones (except Apple) manufactured since 2010 using the MICRO-B USB Connector. However, extending devices that are using the "OTG" (On The Go" wiring standards are NOT supported - such as many USB Thumb Drives
