| Connector A: | HDMI Standard Type A Female |
| Connector B: | RJ45 Ethernet Female |
|
Ship Weight:
|
1.21 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

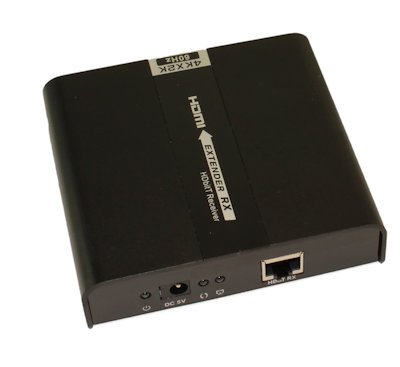

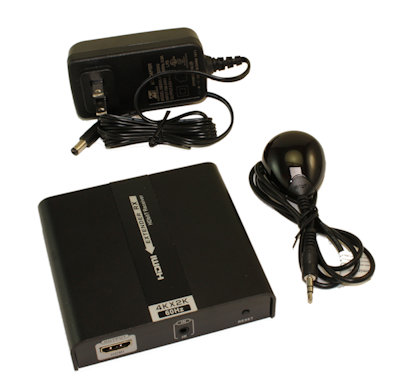

This product is the
RECEIVER ONLY. A LK-V393-KIT must be purchased. This additional receiver will allow for additional displays to receive video distribution when the array using a standard LAN SWITCH. The HDMI
[email protected] OVER CAT6/6A/7 is designed to carry Ultra HD (4K) HDMI signals over distances beyond the capability of standard HDMI cable. It extends video over the cost-effective CAT 6 cables (1 ONLY required) up to 394ft and
[email protected]
We recommend ETL or UL listed CAT6A or CAT7 cables for distances over 300ft for full 60Hz 4K support.
Features and Specifications:- Extend HDMI 4K over Cat5e/6 cable up to 394 ft.
- Supports data rates up to 18 Gbps total
- Supports full Ultra HD [email protected]
- Resolutions (HDTV): 480i/576i/480p/576p/720p/1080i/1080p/3840p at 60Hz
- Digital audio support through HDMI
- HDMI 2.0 and HDCP 2.2 compliant
- Transport Protocol: HDbitT Standards
- RS232 Control
- Point to Point (using supplied TX and TX modules).
- LK-V393 Kit REQUIRED
- Compact metal enclosure
- Power Supply (for receiving unit): 110/5V [email protected]/5W
- REQUIRES: 1 CAT6/6A/7 networking cables (not included) and LAN SWITCH (not included)
NOTE: This product is NOT compatible with the LK-V393-MAT product.
