Color: | Black |
Ship Weight:
|
7.38 lbs |
Warranty: |
1 Year |
Tariff Code: |
8302.50.00.00 |

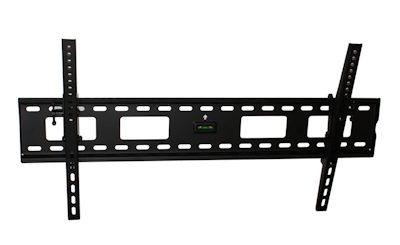

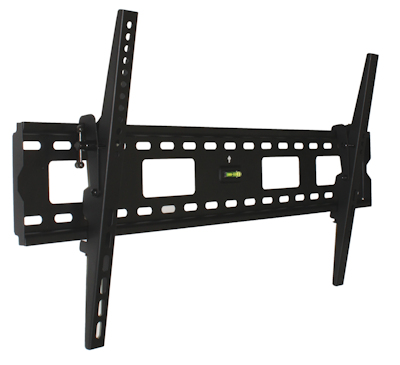

This is Angle Adjustable Wall Bracket for LED, LCD, and Plasma. This Flat Wall Mount supports most 42" to 80" flat panel screen and plasma TVs up to 165 lb weight.
The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The back of the display sits about 3 inches off the wall when set in parallel. The mount includes simple to align brackets and a unique wall plate that can be mounted to various wall constructions including wood studs or concrete. Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Compatibility
Will fit most mid to large-sized flat panel LCD, LED, or plasma TVs with mounting patterns up to VESA 810x400. Mounting holes on television should be 31.8" or less apart horizontally & 15.75" or less apart vertically.
Maximum weight capacity: 165lbs/60kg
Dimensions
Wall plate: 34" Wide x 17.3" High
Measurements are from edge to edge. Mounting points for bolts will be shorter. Please see above.
Range of Motion
Tilt: 10 degrees DOWN (variable)
Swivel: None
Extension from wall: 1.8" when parallel to the wall
Design & Construction
Solid toughened steel construction
Durable scratch resistant finish in Black
Easy installation
Bubble Level
Included in Box
Mount
Mounting hardware
Mount bolts included: (4) M4x30, (4) M5x30, (4) M6X30, (4) M8X25, (4) M8X40
User manual
Please Note: Retail box or supplied documentation may indicate this mount is suitable for a different sized TV. CEDIA (Consumer Electronics Design and Installation Association) has provided us with a REVISED recommended TV size range based on a TV mount's VESA and/or bolt width/height measurements. This revision has generally INCREASED the size capacities of smaller TV mounts as many larger TVs are now much lighter than previous models. We are now using these RECOMMENDED TV Size measurements when stating the approximate TV size ranges that this mount may be suitable. Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above
