Connector A: | RJ45 Ethernet Male |
Connector B: | RJ45 Ethernet Male |
Color: | Blue |
Ship Weight:
|
0.06 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8544.42.20.00 |
Connects any CAT5 application such as computer to hub, patch panel or wall jack. This 350MHz CAT5E PVC stranded patch cord meets TIA/EIA 568A specifications, and support all CAT5E and other high speed applications. It has stranded wires for added cable flexibility. One end is ANGLED 90 degrees. When plugged into a female jack, this will normally have the cable angle UPWARDS
Technical Specifications:- 24AWG Copper twisted pairs
- Suitable for any 10Mbit, 100Mbit network standards up to 1000ft segment runs
- 350 Mhz Category 5E, exceed IEEE standards suitable for up to 1Gbit Networks in shorter lengths
- Unshielded Twisted pairs (UTP) suitable for most business and home network installations
- Cable Category: CM NEC Rated for In-wall installation (Home or business)
- EIA/TIA TSB-40A ETL Verified, for Stranded 568B standards
- 50u" Gold Plated contacted

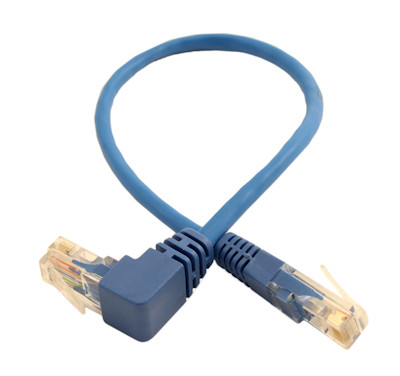

- 1 End 90 Degree ANGLE, the other end STRAIGHT

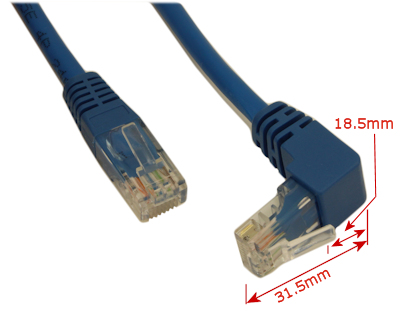

- Angled End Measurement: 31.5mm (Approx 1.2 inches) END to END
- Angled End Measurement: 18.5mm (Approx 0.73 inches) protruding from standard RJ45 socket
- See TECHNICAL DRAWING for detailed measurements
- RoHS Compliant
