Connector A: | 3.5mm TRRS 4 Conductor Male |
Connector B: | 3.5mm TRRS 4 Conductor Female |
Color: | White |
Ship Weight:
|
0.75 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8544.42.20.00 |

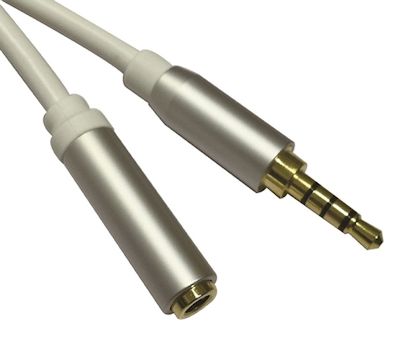

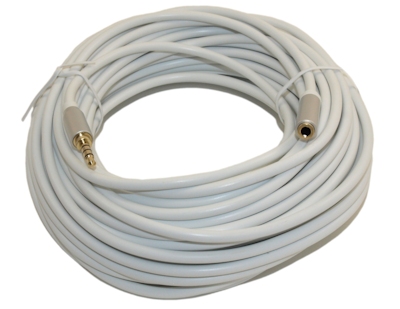

Our PREMIUM line of our 4 conductor cable connects stereo audio & microphone devices requiring 4 conductors (left and right audio and microphone plus ground). This EXTENSION cable MAY also be suitable for left/right audio, 1 video (composite) and ground. This cable has
metal shell connectors,
gold plated conductors, and 28AWG stranded copper wire.
Specifications:
- Connector: 3.5mm (1/8") Male to Female
- 4 conductor, connected straight through
- Outer Diameter of Cable: 3.5mm
- Outer Diameter of Metal Shell Connector (white): 8.5mm
- Durable connector to cable shell suitable for commercial or industrial usage
- 4 individually PVC protected 28AWG copper (CU) stranded wires (Red, White, Green, Yellow)
- Connector ends are GOLD PLATED
RoHS-2 Compliant (Lead Free soldering)
White PVC CablingCompatibility Note: This cable MAY not be compatible with products that make use of volume or switching control
