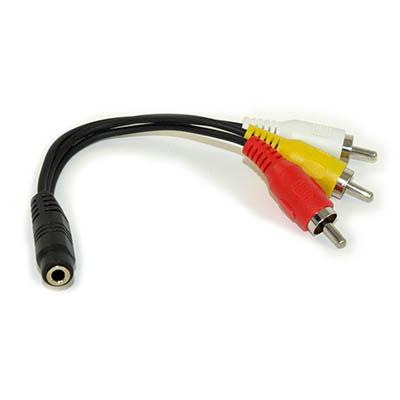

3.5mm 4 Conductor TRRS FEMALE to 3 RCA Male L/R Audio & Video Adapter Cable

24 reviews

3.5mm 4 Conductor TRRS FEMALE to 3 RCA Male L/R Audio & Video Adapter Cable

Price: $5.41 each

FE-ADT-201

QUANTITY: In Stock

REQUEST QUOTE OR CUSTOMIZATION

PRODUCT DATASHEET

Qty Discount Pricing
2 - 5	6 - 10	11 - 30	31 - 50	51 - 100	101 - 200	201+
$4.87	$4.56	$4.30	$4.11	$3.98	$3.90	$3.82

Connector A:

RCA/Phono Male

Connector B:

3.5mm TRRS 4 Conductor Female

Free Shipping on Orders $100+ for qualifying products,
Learn More.

Add to Wishlist

Share via Email

Share on Facebook

Share on Twitter

Connector A:	RCA/Phono Male
Connector B:	3.5mm TRRS 4 Conductor Female
Ship Weight:	0.08 lbs
Warranty:	Ltd Lifetime
Tariff Code:	8536.69.40.10

Specifications:

Female 3.5mm 4 Conductor TRRS (Left & Right Audio, Video, and Ground) Connector.
3 RCA Male Connectors (Red/White RCA Audio, Yellow-Composite Video)
Length: Approximately 6 inches
Nickel Plated Conductors
Pin-Out: Tip - White (Audio Left), Ring 1 - Red (Audio Right), Ring 2 - Signal Ground, Sleeve - Yellow (Video)

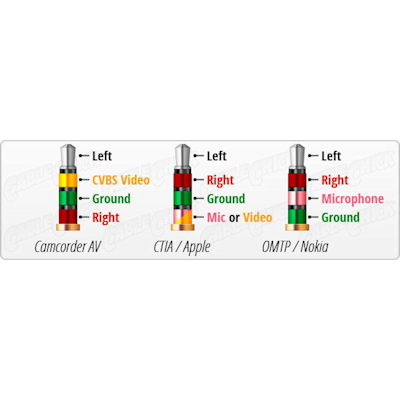

Important Tech Note: This cable is wired to the CTIA / Apple standard, in the image below it is the middle image. The most important factor in connecting this to your device is that the grounds match between this cable and your device. If your device has ground on the second ring this cable alone will work fine, you will just need to match up the other connectors to your device standard, meaning that the actual colors of the connectors might not match between your device and this cable (your yellow may connect to white on our cable), but the signal types will match and work properly . Also, if your device is wired as OMTP / Nokia, the third depiction, we have a product that will swap the second ring and sleeve connector and can be used along with this cable to properly align the ground connection, this product is the FE-4CT-CTIA-MF.

RMA Returns for this product will be granted - but My Cable Mart will NOT provide pre-paid return shipping costs due to product incompatibilities

Need a LARGE quantity or customization? [REQUEST QUOTE or CUSTOMIZATION]
