Connector A: | RJ45 Ethernet Female |
Connector B: | RJ45 Ethernet Female |
Color: | Ivory |
Ship Weight:
|
0.03 lbs |
Warranty: |
Ltd Lifetime |
Tariff Code: |
8544.42.20.00 |

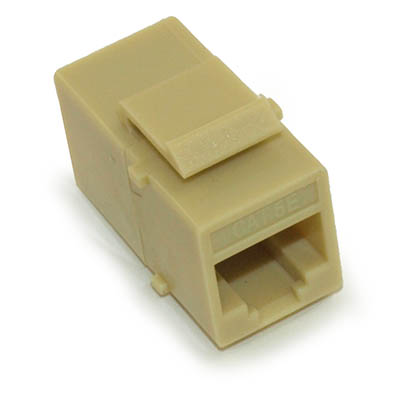

Easy to use coupler style keystones allow you to use RJ45 terminated cables in the front and the back eliminating the need to splice wires while standing behind a rack. You can use preterminated fix length cables as well, eliminating the need for crimping. Fits all standard keystone wall plates and panels!
- Cat 5E style Keystone jack, coupler type
- No need for "punch out" installation. Simple plug in another Cat 5E cable at the back!
- For use with Keystone panels or wall plates (not included, sold seperately)
- Suitable for either CAT5, CAT5E, or CAT6 networks
- Front and back is RJ-45 8 wire connection, straight through connection
Technical Design Note: Although visually, this coupler keystone insert appears to "invert" the 8 ethernet wires, it is a STRAIGHT THROUGH coupler
NOTE: Our IVORY wall-plates and inserts are manufactured from multiple different factories, and thus the die-lot color of IVORY may be different from product to product.My Cable Mart Keystone WALL-PLATES and INSERTS all adhere to NEMA standards. Keystone insert modules have a rectangular face of 14.5mm wide by 16.0mm high, and are held in place with flexible tabs. This allows them to be snapped into a mounting plate with correspondingly-sized holes called ports. All keystone inserts, regardless of the type of jack they carry are interchangeable and replaceable. This provides for much flexibility in arranging and mounting many different type of electrical and A/V jacks into one plate.
LOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
