| Connector A: | HDMI Standard Type A Male |
| Connector B: | HDMI Standard Type A Male |
|
Ship Weight:
|
1.96 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |
Connect any Blu-Ray player, Satellite Box, Cable Box, DVD Player, or ANY device accepting the standard HDMI connector. All our HDMI cables are manufactured to specific HDMI LLC standards and have passed stringent ATC testing requirements (see our certificates below).
Supports the following features that are included in the HDMI Version 1.4A Specification:
- 4K x 2K Support - Supports ANY resolution to 4K (4096x2160) at 30Hz
- HDMI Ethernet Channel - Delivers Ethernet data interconnectivity to compatible devices through the HDMI port so you don't need extra cables to get extended features
- Audio Return Channel (ARC)- Allows the HDMI connection between a television and A/V receiver to transmit audio two ways, both upstream and downstream. This eliminates the need for a separate audio cable ensuring the high digital audio quality of HDMI
- Full 3D Support - If your source and receiving device support 3D, this cable will (using Standard speed)
- Support for ANY TV refresh rates (such as 120Hz/240/480/600Hz), HDCP 1.2 and 2.2 Support Click HERE for an explanation of refresh rate technology
Cable Specifications and Additional Features:
- Plenum Rated (UL Number: E197461B)
- Teflon/PVC jacket insulation is fire-retardant and is low-smoke rated PVC meeting National Fire Protection Assoc (NFPA) 90A and Article 800 of the NEC
- CEC (Consumer Electronics Control), Auto Lip-Sync, Dolby TrueHD, and DTS-HD
- Wire Gauge: 24 AWG
- Standard Speed bandwidth: 4.92GigaBit/sec (Tested and Certified to ATC Specification)
- Gold Plated 1u (All 19 wires and Ground Shroud)

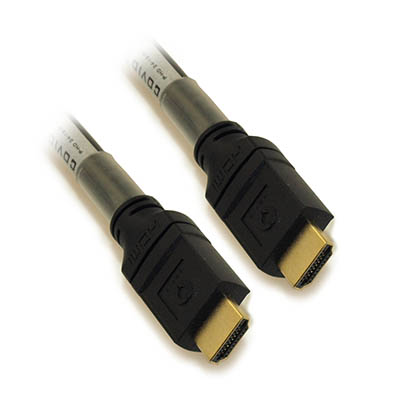

- 19 pin, Male to Male, Type A Connector
- Silver-tinned PURE copper wire for maximum conductivity - without ANY harmful lead (RoHS)
- Triple Shielded, EMI (Foil, braid, foil)
- 100% Backward compatible with all previous HDMI versions
- No bulky ferrites cores! (Why not?)
Important Warranty Note: These PLENUM cables are a heavy, thick cable. They require CAREFUL handling and SUPPORT when connected to your AV equipment. We will NOT honor warranty replacement cable requests when the HDMI connector ends have been bent, damaged, or physically detached from the cable.
What is a Plenum Rated Cable? A Cable that is run in the plenum spaces of buildings. In building construction, the plenum (pronounced PLEH-nuhm) is the space that is used for air circulation in heating and air conditioning systems, typically between the structural ceiling and the suspended ceiling or under a raised floor. The plenum space is typically used to house the communication cables for the buildings computer and telephone network(s). However, use of plenum areas for cable storage poses a serious hazard in the event of a fire as once the fire reaches the plenum space there are few barriers to contain the smoke and flames. Plenum cable is coated with a fire-retardant coating (usually Teflon) so that in case of a fire it does not give off toxic gasses and smoke as it burns. Twisted-pair and coaxial versions of cable are made in plenum versions.
