| Color: | Black |
|
Ship Weight:
|
0.06 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

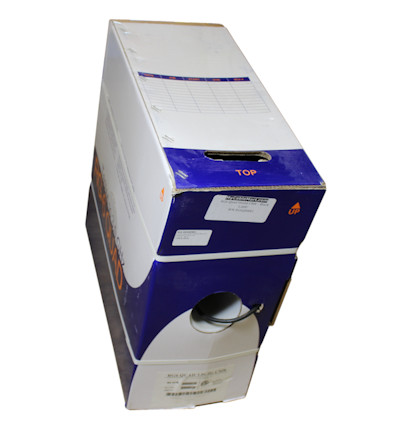

Important Note: This product is sold
PER FOOT. If you order
QTY 1, we will provide you with a
1 foot length. If you order
QTY 50, we will provide you with
1 50ft length, not terminated with any connector ends. This product can NOT be returned for refund as it is a cut-to-length product.

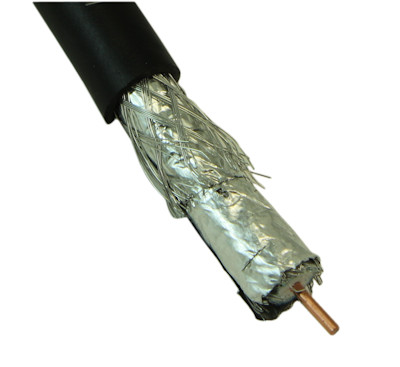

RG6 Quad Shield is great for Hi-Impact Acoustics, antennas, cable television and satellite installations, Its durable 18 AWG copper clad steel center conductor is surrounded by foam polyethylene dielectric. Sweep testing ensures 3.0GHz performance at applicable frequencies.
Features:
- 18AWG Solid .040 Bare Copper-Clad Steel Conductor
- (2) 100% Aluminum-Mylar Shielding
- Outer Diameter (OD): ~7.4mm
- (2) 60% Aluminum Braid
- Impedance: (+/- 3.0 Ohms) 75 Ohms
- Gas Injected Foam Polyethylene Insulation
- CM/CL2 Rated PVC Jacket
- Sweep Tested to 3.0GHz
- Sold BY THE FOOT / Sequential Foot Markers
- CMR Rated
- UL and CUL Listed
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
