Ship Weight:
|
20.72 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8302.50.00.00 |

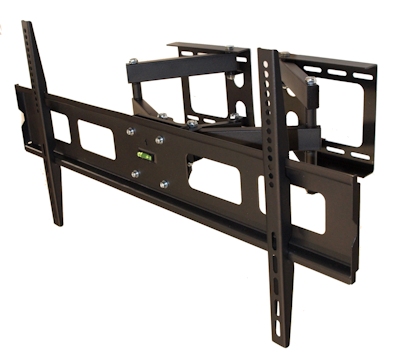

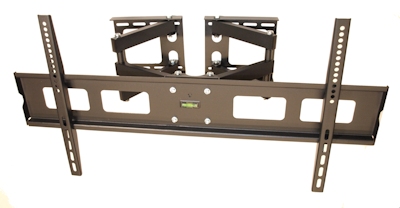

Adjustable Tilting up/down (+15 degrees forward, -15 degrees back) and Swivel left/right (+-45 degrees side to side) Wall Mount Bracket for LCD Plasma (Max 132Lbs, 42~74inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most
any 42in to 74in flat panel screen and plasma TVs up to 132lb weight that comply with VESA mounting standards. Motion MAY be limited depending on the corner configuration used. Please see PRODUCT MANUAL for special CORNING MOUNTING considerations. This model is IDENTICAL to the
LU-LPA13-484, but with the rear mount plate is cut into 2 pieces to allow for corner mounting.
This mount is intended to be used in a CORNER MOUNT situation. A stud MUST be located on each corner wall location.
Compatibility:
- Will fit most small to mid-sized flat panel LED, LCD, and plasma TVs with mounting patterns up to VESA 826x404.
- Mounting holes on television should be 32.5" or less apart horizontally & 15.75" or less apart vertically
- Maximum weight capacity: 132lbs
Dimensions:
- Wall Back mount plate: 2 sections, each 9"W x 8"H
- TV Front mount plate: 34" x 6"
- Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
- Tilt: up to 15 degrees upward & 15 degrees down (variable)
- Swivel: -45 to +45 degree rotation (left/right depending on TV size and location from wall. This swivel will be greatly affected by the location of the corner mount plates.
- Mount continues to allow for left/right swivel after mounting, with tension controlable via supplied hex tool
- Extension from wall: Not applicable
Design & Construction:
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
Included in Box:
- Mount
- Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
- User manual
SPECIAL CORNER MOUNTING CONSIDERATIONS:
Our specifications indicate support for TVs up to 74". However, CORNER MOUNTING at a 45-degree angle may require some additional site preparation. Although larger TVs will properly fit on the mount itself, when attempting to attach the 2 rear-plates to the wall, a larger TV may not clear the wall even with the mount arms fully extended. One may first have to install suitable "filler-shims" made from material such as (2) 2by4's (laid flat) for each rear plate. This will allow for the mount structure to be extended further from the wall, and thus allowing the edges of the TV to clear the wall.
