| Connector A: | VGA HD15 Female |
| Connector B: | RJ45 Ethernet Female |
|
Ship Weight:
|
4.56 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8525.50.30.35 |

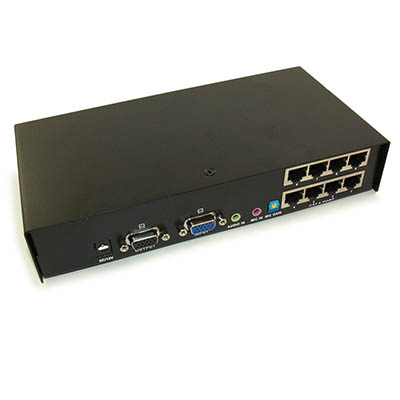

Extends video signal up to 300 meters (984ft) using the VGA Extender System and CAT5/RJ45 cable. This transmitter or local module provides 8 VGA/Audio distribution amplifier port over CAT5 plus local port that allows connection of another monitor near the computer. Supports 96KHz audio sampling rate and maximum video resolution of 2048x1536 @ 60Hz for up to 50meters, 1280x1024 @ 60Hz for up to 100meters, 1024x768 @ 60Hz for up to 180meters, 800x600 @ 60Hz for up to 200meters, & 640x480 @ 60Hz for up to 300meters.
This must be used in conjunction with
BB-VAC5-ER Extender System's Receiver/Remote Module. See related product shown at right. 1 BB-VAC5-ER must be purchased for EACH receiving video unit.

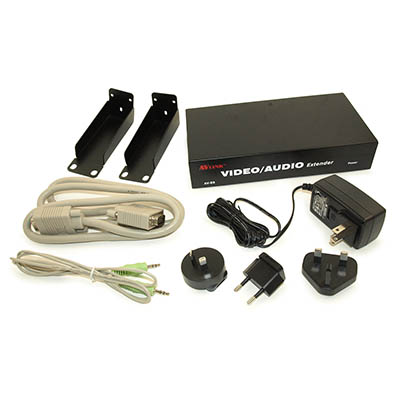

Includes transmitter and power adaptor. Required Cables: Solid CAT5e/6 Cables.
(Connectors: 3.5mm/HD15/RJ45 Females)
