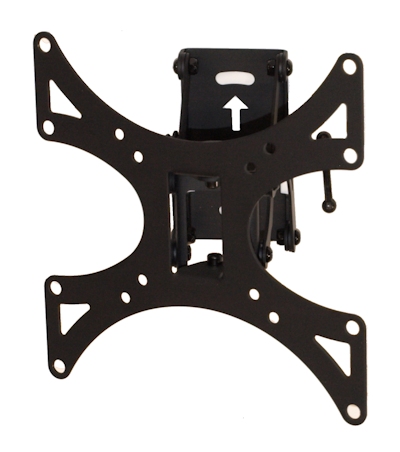

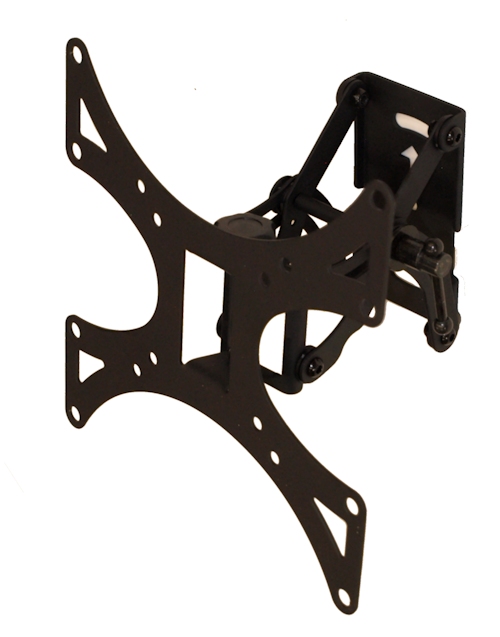

The mount allows you to tilt the display up and down about 35 degrees off center max. You can swivel it side to side up to 50 degrees off center max. And, it will retract down to a depth of 3.25" when parallel and even to the wall and extend out to a maximum of about 5.75".
It will support any display within the weight limit that has a VESA 50, 75, 100, 200 or 200x100 compliant mounting pattern. (Vesa 75 is a square hole pattern where each hole is about 3" apart vertically and horizontally. Vesa 100 has holes that are about 4" apart. Vesa 200 are about 8" apart. Vesa 200x100 are about 8" apart horizontally and 4" apart vertically). On plate that attaches to wall, plate holes (3 of them) are 1 3/4" in a straight line, vertically.
Compatibility:
Flat panel LCD and LED TVs and monitors with mounting patterns of VESA 75/100/200 and 200x100
TV Mounting holes should be:
3" apart horizontally & 3" vertically (VESA 75x75),
4" apart horizontally & 4" vertically (VESA 100x100),
8" apart horizontally & 8" vertically (VESA 200x200), or
8" apart horizontally & 4" vertically (VESA 200x100)
Maximum weight capacity: 37lbs
Dimensions:
Wall mount plate: 5.11" x 2.5"
TV mount plate: 8.5" x 8.5"
Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
Tilt: 35 degrees off center
Swivel: 50 degrees off center side to side
Extension from wall: 3.25" to 5.75"
Design & Construction:
Solid toughened steel construction
Durable scratch resistant
Black Finish
Easy installation
Included in Box:
Mount
Mounting hardware: ONLY includes (4 Lag Bolts and 4 Optional Concrete Anchors)
User manual
Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits
Note: Machine bolts (M4, M5, and M6 metric sized) for mounting TV panel to Mounting Bracket are included.
