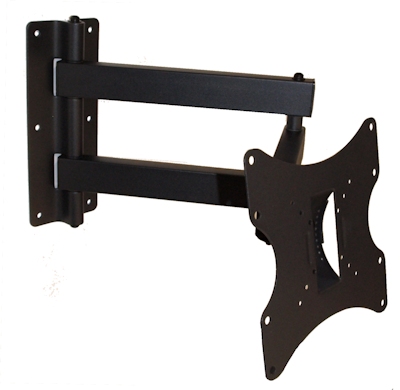

Heavy Duty, High Quality, Steel Wall Mount for Flat Panel Displays.

Compatibility:

• Flat panel Plasma and LCD TVs with mounting patterns of VESA 50/75/100/200 and 200x100 (or use adapter)
  Mounting holes on television should be:

• 2" apart vertically & 2" horizontally (VESA 50x50)

• 3" apart vertically & 3" horizontally (VESA 75x75)

• 4" apart vertically & 4" horizontally (VESA 100x100)

• 8" apart vertically & 8" horizontally (VESA 200x200)

• 8" apart vertically & 4" horizontally (VESA 200x100)

• Maximum weight capacity: 60lbs

  Dimensions:

• Wall mount plate: 11.81" x 4.92

• TV mount plate: 8.66" x 8.66"

• First Arm Extension (From wall plate): 13.97"

• Second Arm Extension (From first arm to where TV mount plate attaches): 11.41"

• Min Depth from Back of Mount to Wall when fully collapsed: 3.5"

• Measurements are from edge to edge. Mounting points for bolts will be shorter.

  Range of Motion:

• Tilt: 20 degrees (upwards & downwards)

• Swivel: 190 degrees (left & right)

• Max Extension from wall to TV mount plate: 26.5"

  Design & Construction:

• Solid toughened steel construction

• Durable scratch resistant

• Black Enamel Finish

• Ideal space saver: folded flat to the wall

• Easy installation

  Included in Box:

• Mount

• Mounting hardware

• Mount bolts included: (4) M4x10, (4) M5x10, (4) M6x10

• User manual

Installation Note: This mount MUST be securely attached to studs, or other suitable surface. Do NOT mount directly to drywall unless using our specialized drywall mount kits. May be safely attached to a SINGLE stud (either left or right side), providing all three screws are securely attached to the CENTER of the stud. Depending on horizontal size of TV to be mounted, arm may be visible when mount is fully collapsed against wall.
