Color: | Brown |
Ship Weight:
|
0.07 lbs |
Warranty: |
1 Year |
Tariff Code: |
3918.10.50.00 |

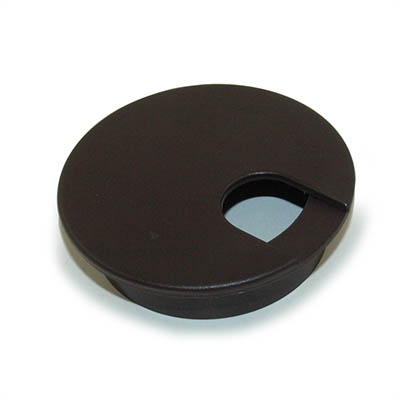

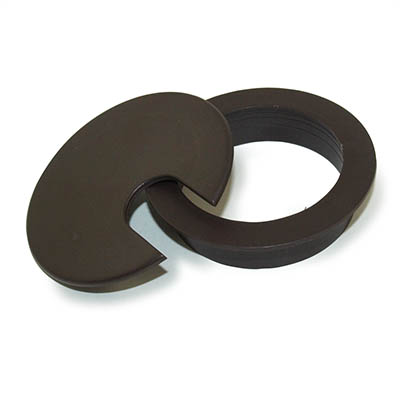

Organize your cables with professional desk and cabinet cable-pass through grommets. Cut hole to size specified, and either press or glue into place.
Specifications:- Hole Size Required: 2.5".
- Grommet Insert Width: 2.459"
- Grommet Lid Width: 2.972"
- Grommet Depth: Approx 0.625"
- Inside Usable Diameter (Approx): 2.21"
- Size Tolerances May Vary
Important Installation Note: The Grommets are manufactured to be slightly less that the hole size. For example, if we have a grommet advertised at 2.5 inches (example size ONLY), when measured on a caliper, it will measure at approx. 2.459" inches - or approx .04 inches LESS than the hole size of 2 inches. This difference is by design to allow for the grommet to be inserted into the CUT hole size. These grommets after inserted into a cut hole are intended to move freely. If you need a TIGHT fit, a small amount of glue or silicon may be needed.

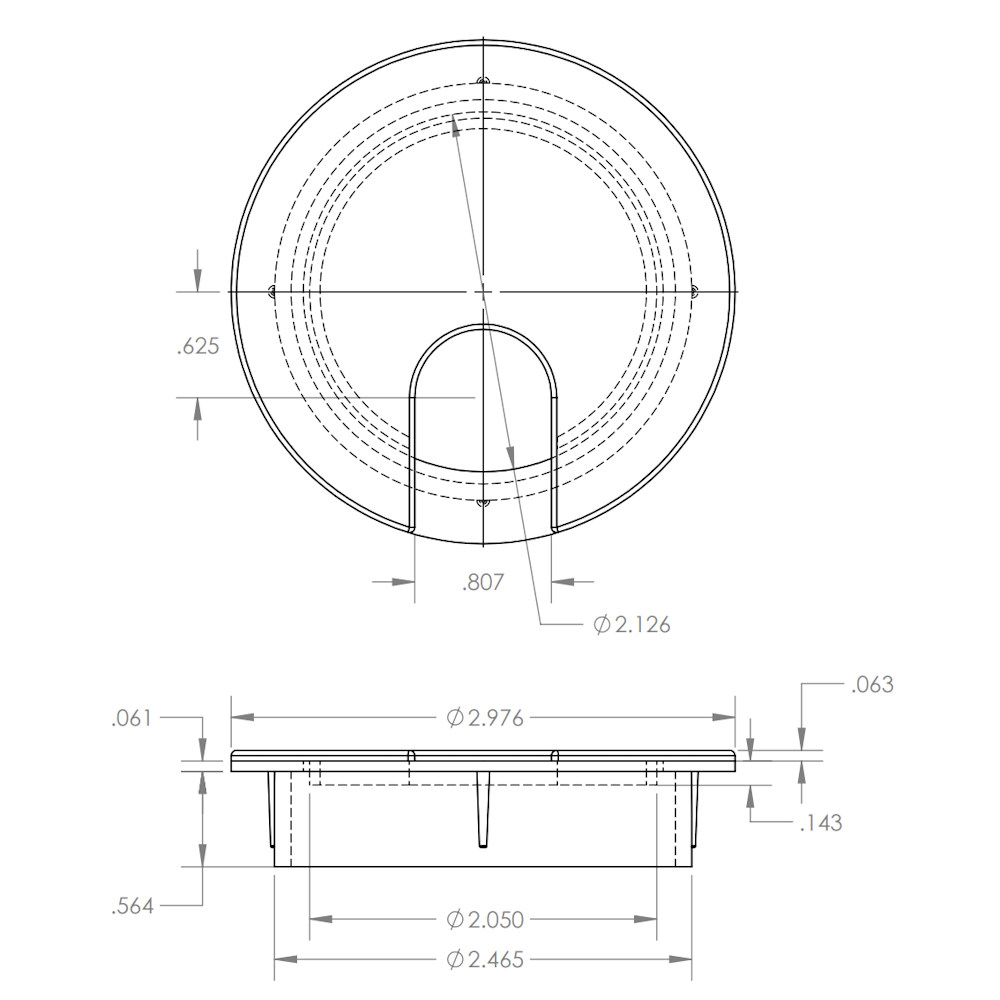

Please see technical drawing (Product Manual) below for size and shape details.
LOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
