| Color: | White |
|
Ship Weight:
|
2.42 lbs |
|
Warranty: |
1 Year |
|
Tariff Code: |
8536.69.40.10 |

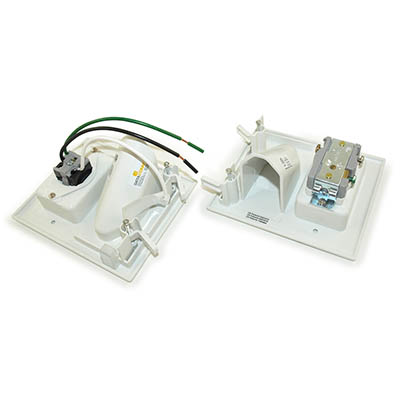

Introducing DataComm Electronics new Recessed Pro-Power Cable Kit with Straight Blade Inlet. Use our Recessed Low Voltage Cable Plate with Recessed Straight Blade Inlet to install power and low voltage cables from behind your flat panel TV, your amplifier or other audio and video devices to your equipment room. The 45-0023 Recessed Pro-Power Cable Kit can be installed upright or upside down.
Using the National Electrical Compliant approved installation, pull an approved 14/2 with ground or 12/2 wire (not included) with ground building wire cable from the installed Recessed Low Voltage Cable Plate with Power to the selected site in the equipment room. Install a new or old workbox before installing the Recessed Pro-Power Cable Plate with Straight Blade Inlet. This is a non-energized connection. To energize this connection, simply plug the supplied 6 ft. straight blade extension cord into the recessed straight blade inlet and plug the straight blade end of the extension cord into your rack mounted surge protector.
Included:
1. Recessed Cable Plate with Power
2. Recessed Cable Plate with Straight Blade Inlet
3. 6 Ft. Extension Cord
4. Two (2) Old Work Electrical Boxes
5. Three (3) Wire Nuts
UL Listed, confirms to UL Std 514C, Canada UL C22.2 No 42.1
NOTE: 14/2 or 12/2 wire NOT included, but will be required to complete this installation
LOT COLOR DISCLAIMER: My Cable Mart manufactures and purchases their grommets, wall-plates, keystone inserts, decora frames, and other ABS and PVC products from MULTIPLE different factories and suppliers. As such, we cannot guarantee that a product listed as the SAME COLOR will exactly match another product also with that same color due to lot dye differences. Color shown on photo is an approximate representation of the actual color.
