| Connector A: | USB Type B Male |
| Connector B: | USB Type B Female |
|
Ship Weight:
|
0.07 lbs |
|
Warranty: |
Ltd Lifetime |
|
Tariff Code: |
8544.42.20.00 |

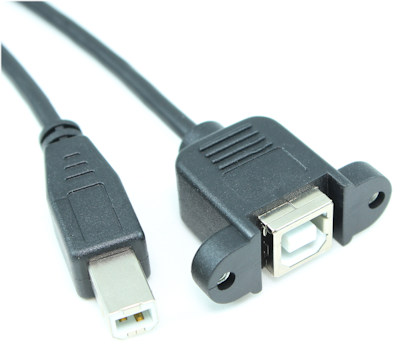

This is a PANEL MOUNT product. Supports USB speed up to 480Mbp.
Technical Specifications:- USB v2.0 compliant
- Supports Hi-Speed, 480 Mbps
- Connector A: USB 2.0 TYPE B Male
- Connector B: USB 2.0 TYPE-B Female Panel Mount
- Panel Connector Dimension: 37.3W x 14.3H mm
- Panel Connector between bolt hole measurement: 30.0mm
- Shielded (Foil), 100% Copper (CU)
- 28AWG(7/0.12BC)*1P + 24AWG(7/0.2BC)*2C+AL+D
- Nickel plated conductors

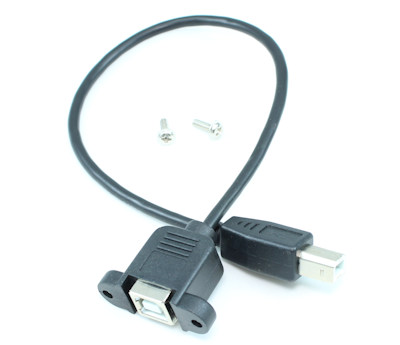

- 2 Mounting bolts included
- Cable Outer Diameter: 4.0mm
- Color: Black
- RoHS-2 Compliant
