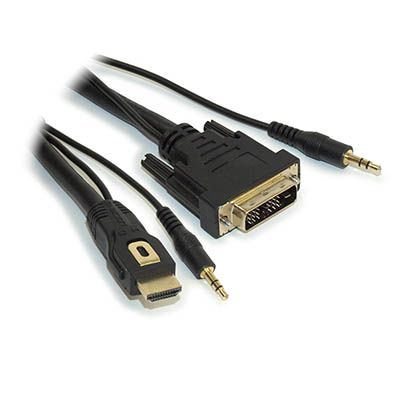

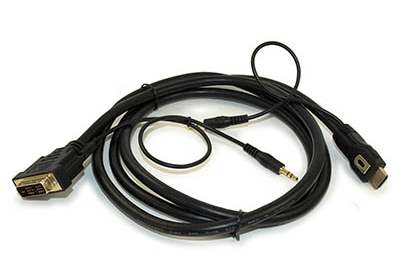

This is a unique cable where the 3.5mm or 2 RCA audio is extruded along the HDMI and DVI cable in order to give an Audio source to this all in one cable. As most know that DVI has never given nor does it have an output for Audio, it only gives Video hence its prefix DVI for Digital Video Interface. As such consumers would have to buy an external audio cable at an extra cost and to manage an extra dangled cable. Distributors & wholesalers don't have to stock the extra cable in their inventory or bypass the extra sku. Well no more, as we have introduced a new cable solution to the market.

What hardware would utilize this cable?
With the newer LCDs, PLASMAs and DLPs the back panels has this feature with an HDMI and 2 RCA input or one 3.5mm audio input. This cable is also compatible with older hardware that has an DVI-A, DVI-D & DVI-I ports.

Purpose of use?
DVI was introduced and production started in 1999 with millions of hardware and peripherals utilizing the DVI connector and invention, but the downfall was that it had no audio. Thus millions of people are now stuck with the hardware in the consumers, prosumers and the professionals market and it would cost too much to discard, upgrade or replace a perfectly functioning equipment. Gamers are in it's own group who wanted the HighDef resolution but with the pitfall of no audio. With this cable it will offer a solution to link newer hardwares with older existing hardwares, which the market has long been waiting for.

Important This cable does NOT integrate digital audio into the HDMI portion of the cable. It instead is a convenient cable bundle that includes an ANALOG source and destination connection in the same cable harness.

• Length: 6ft / 2.9M


• 3.5mm Female to 2 RCA Male Adapter Cable included!


• 3.5mm pigtail lengths: At HDMI End - 8.5", at DVI End - 12.5" (approx)

• Wire Gauge: 28 AWG


• Supports the following resolutions: 720i, 720p, 1080i, 1080p, 1280x1024, and beyond (WITHOUT the need of a booster)


• All our HDMI, HDMI-DVI, and DVI-DVI cables are fully HDCP compliant


• Standard 19pin connection, Male to Male, Type A Connection


• DVI-D Connector: Standard 18pins + "blade" connection, Male


• As DVI technology itself does not support digital audio, the supplied 3.5mm audio cable embedded inside the HDMI/DVI cable provides a convenience bundle for your analog audio, and requires a seperate connection to your source and HDTV


• Silver-tinned copper wire for maximum conductivity - without ANY harmful lead


• These premium HDMI certified cables support high-bandwidth, uncompressed video


• Double shielding for maximum video performance and prevents signal loss & screen ghosting.


• HDMI 1.2a adds support for One Bit Audio format, such as SuperAudio CD's DSD (Direct Stream Digital).


• UL / CSA listed, have matched impedance


• PVC jacket, molded ends, Inner hood soldered 360 degrees to the connector for complete end to end shielding.


• Compliant with HDMI 1.3a specs (and backward compatible to all previous versions) to ensure your cable will work with today's, and tomorrow's electronic equipment.


• Certified for compatibility with Sony PlayStation-3, Dolby TrueHD, DTS-HD Master Audio, Blue-Ray HD DVD, and HD-DVD


• 24K Gold-plated connecting pins AND ground connections to ensure excellent connectivity.


• Supports distances of up to 50ft without any signal loss.


• Is RoHS Green Certified. Production process that uses laser jacket stripping & aluminum foil cutting with precise machine soldering.


• Outperforms all more expensive "retail boxed" cables - guaranteed or your money back!


• Limited Lifetime Warranty


• Friendly Return Policy!


• Photos shown do not necessarily represent the actual products LENGTH

My Cable Mart only purchases HDMI cables from authorized adopters.
Adopters are manufacturers (and distributors) who have submitted their products
to HDMI for testing and certification.
