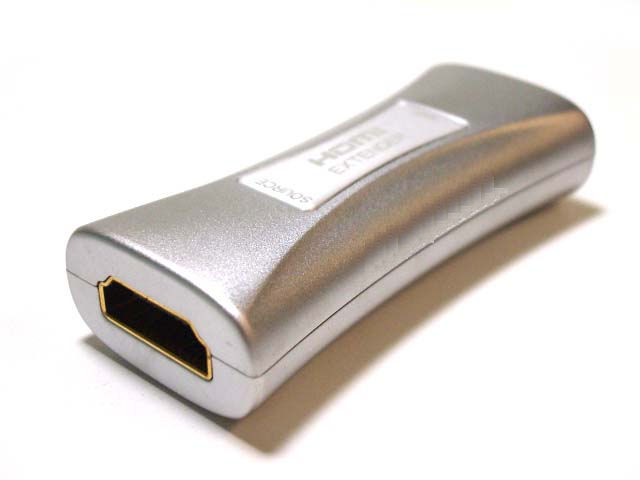

Regenerates a weaker HDMI signal. Typically and ideally installed near the END point in an HDMI cable segment. Uses 5 volt draw from the HDMI cable's pin 18 to power the on-board booster circuit. As this booster has female/female connectors, you will need a short length of HDMI cable (we recommend a 1.5ft 24 AWG cable) - see related product shown at right) to connect this close to the TV side of the circuit.

• Extends effective length of HDMI Cables up to 100ft.

• Uses the Power on the HDMI Bus to Enhance and Repeat the Signal.

• Maximum Data Length Based on Gauge of Wire.

• 0 to up to 164 feet Over HDMI-Cable, 24 AWG STP

• 0 to up to 118 feet Over HDMI-Cable, 28 AWG STP

• 0 to up to 98 feet Over HDMI-Cable, 30 AWG STP

• Compatible with DTV Resolutions 480i, 480p, 720p, 1080i, and 1080p

• Best Low Cost Solution to the Extra Long Cable Length Problem.

• Female-Female Adapter Incorporating the Integrated Circuit

• TWO standard HDMI cables (total) needed.
