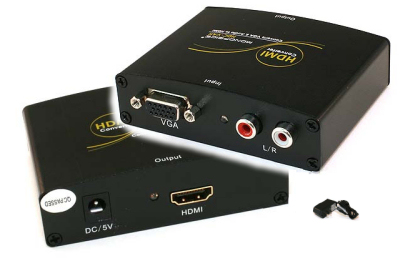

This VGA + Analog audio to HDMI converter combines your analog VGA (RGBHV) video signals with analog Left/Right (Red/White RCA) Audio from your source devices and outputs them in HDMI format. Great for connecting the VGA video output of your computer or media server and integrating it into a new digital HDMI Home Theater System.

Features:

• Easy to Use: Install in seconds, no need for setting changes

• Conversion: Converts a PC's analog left and right audio into the digital HDMI audio

• HDCP Compliant

• Inputs: .5-1 volts Video. 15pin VGA, 2 RCA Female L/R Audio

• Outputs: HDMI 1.3 Compliant w/HDCP

• Supports VGA Modes: 640x480 at 60/72/75Hz, 800x600 at 60/72/75Hz, 1024x768 at 60/70/75Hz, 1280x1024 at 60Hz, 1600x1200 at 60Hz

• Supports HDMI Signals: 1080p/1080i/720p/576p/576i/480p/480i

• Supports Audio Formats: DTS/Dolby-AC3/LPCM7.1/DSD

• Max transmission bandwith: 4.95Gbps

• Output Cable Distance:

• Dimensions: 89.6mm (L)x69mm(W)x33.2mm(H), 162g

• External Power Supply (included): 5volt DC at 1 Amp

• HDMI and VGA Cables (male/male) NOT included. They must be purchased seperately


NOTE: When using this product you may have to adjust your PC's supported VGA resolution setting to comply with your supported HDTV resolution.
