Premium VGA EXTENSION M/F Triple-Shield Cable Gold Plated
|
|
|
|
|
|
|
Lengths Available: |
1.5ft, 6ft, 15ft, 25ft, 50ft, 100ft, each, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-VGAX-01F, FE-VGAX-06F, FE-VGAX-15F, FE-VGAX-25F, FE-VGAX-50F, MR-SVGAF-100MF, FE-VGAX-10F, |
| |
|
|
Sales Category: |
VGA Extension Cables |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
VGA HD15 Male |
Specification: |
|
|
Connector B: |
VGA HD15 Female |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
100 FT |
|
# Positions: |
15 |
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
HD15 |
|
| |

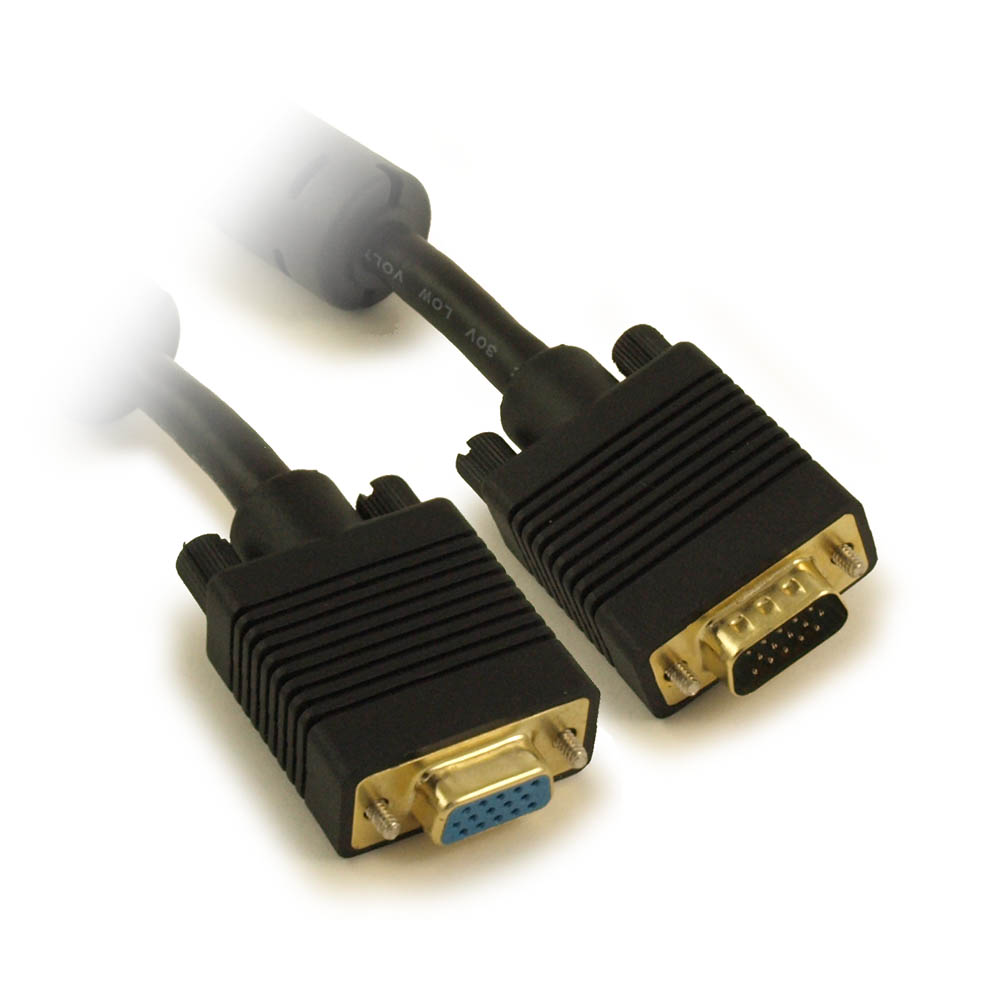

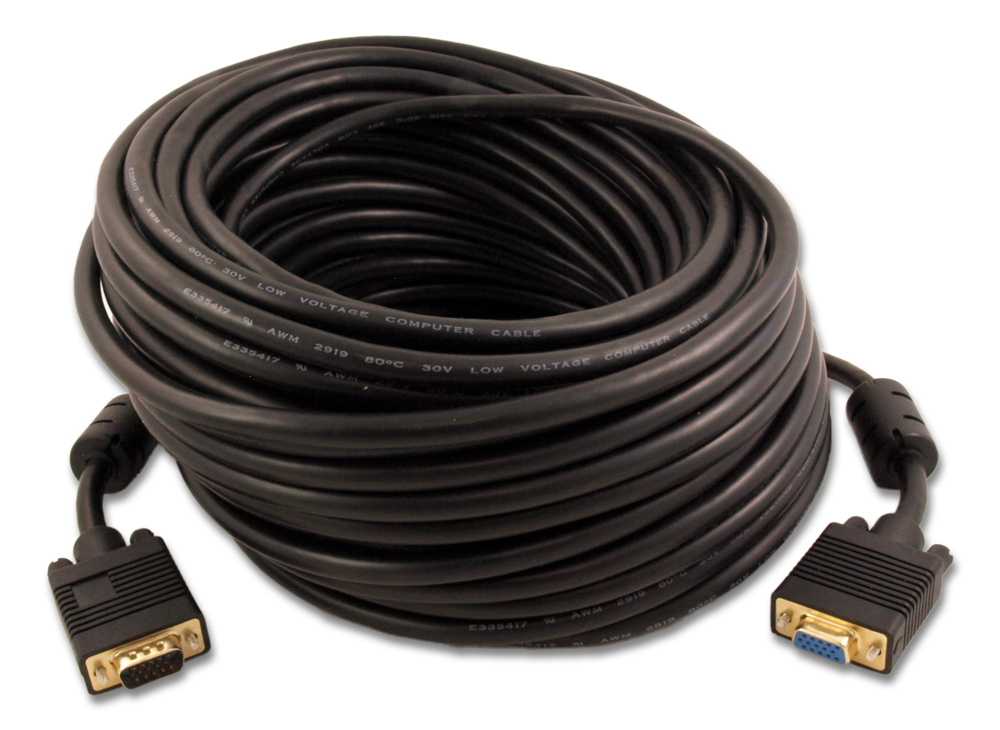

This VGA EXTENSION cable features a low loss, double shielded design. Signal integrity is further enhanced by ferrites cores that filter out noise. Comes with durable molded connectors with thumbscrews (at male end) and connecting nuts (at female end) for a secure connection. Great for connecting high resolution analog displays. Comes with a lifetime warranty for peace of mind. 1 Male, 1 Female 15pin connection, VGA connections are also commonly referred to as HD15, DB15 (a misnomer), PC in/out, RGB and RGBHV.
Specifications:
- EXTENDS the length of an existing VGA cable.
- Supports all VGA monitors including analog flat panel display, high resolution desktop, CAD and graphic workstations.
- Male Connector: Fully Pinned 15 male with thumb-bolts
- Female Connector: Fully pinned 15 female pin-holes with connecting fixed female hex nuts
- Triple shielded for maximum graphics performance preventing signal loss, screen ghosting & loss of color
- Works up to 200ft without a signal booster.
- DDC Data Support
- Gold Plated Connectors
- Have matched impedance w/PVC jacket
- Connectors: HD15 Male to Female
- Ferrite cores (both ends)
- Color: Black
|
