LOW PROFILE HEAVY DUTY Wall Mount Bracket 37-70 TVs to 165 lbs Black


 Lengths Available: 32-55in, 32-55in, 37-70in, 37-80in, 60-100in, 60-120in, each,
 Colors Available: Black
 Part Numbers this model: LU-KL22-44F, LU-LDT03-17S, LU-PLB-34L, LU-KL22-64F, LU-LP37-69F, LU-LP73-69F, BE-502731BK,

 Sales Category: TV Mounts  Approx TV Size / Weight: 37 - 70, 165lbs Max
 VESA Type / Style: VARIABLE / FLAT TO WALL  Vesa Specs (WxH) mm: FROM 100x100 TO 625x400
   Mount Holes (WxH):  RANGE FROM: 3.9" (W) x 3.9" (H) TO: 24.6" (W) x 15.7" (H)  Supports Curved TVs?: Yes

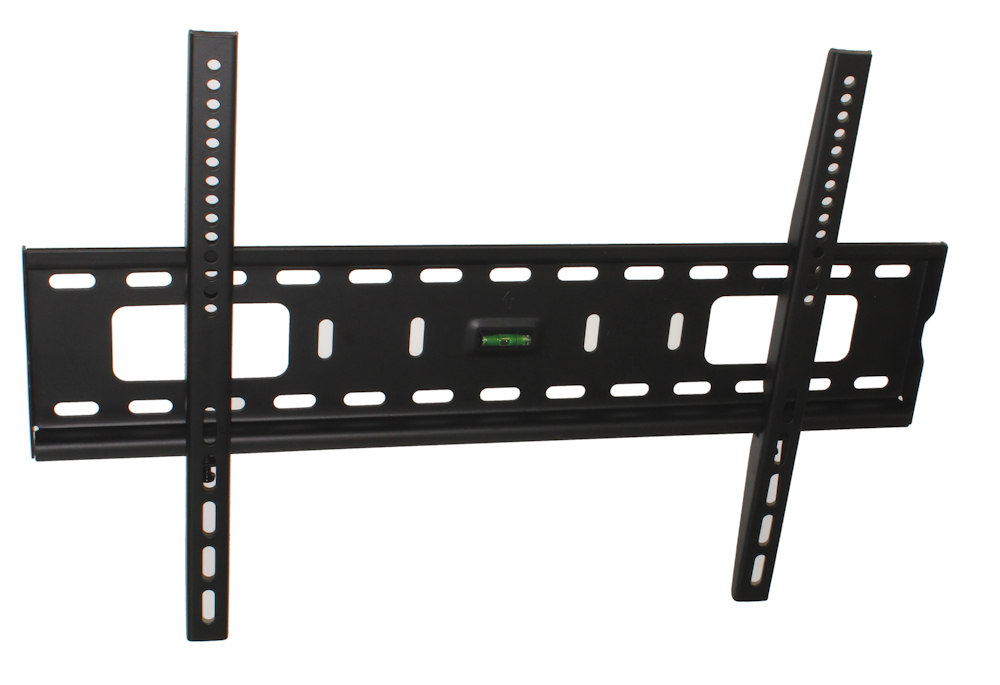

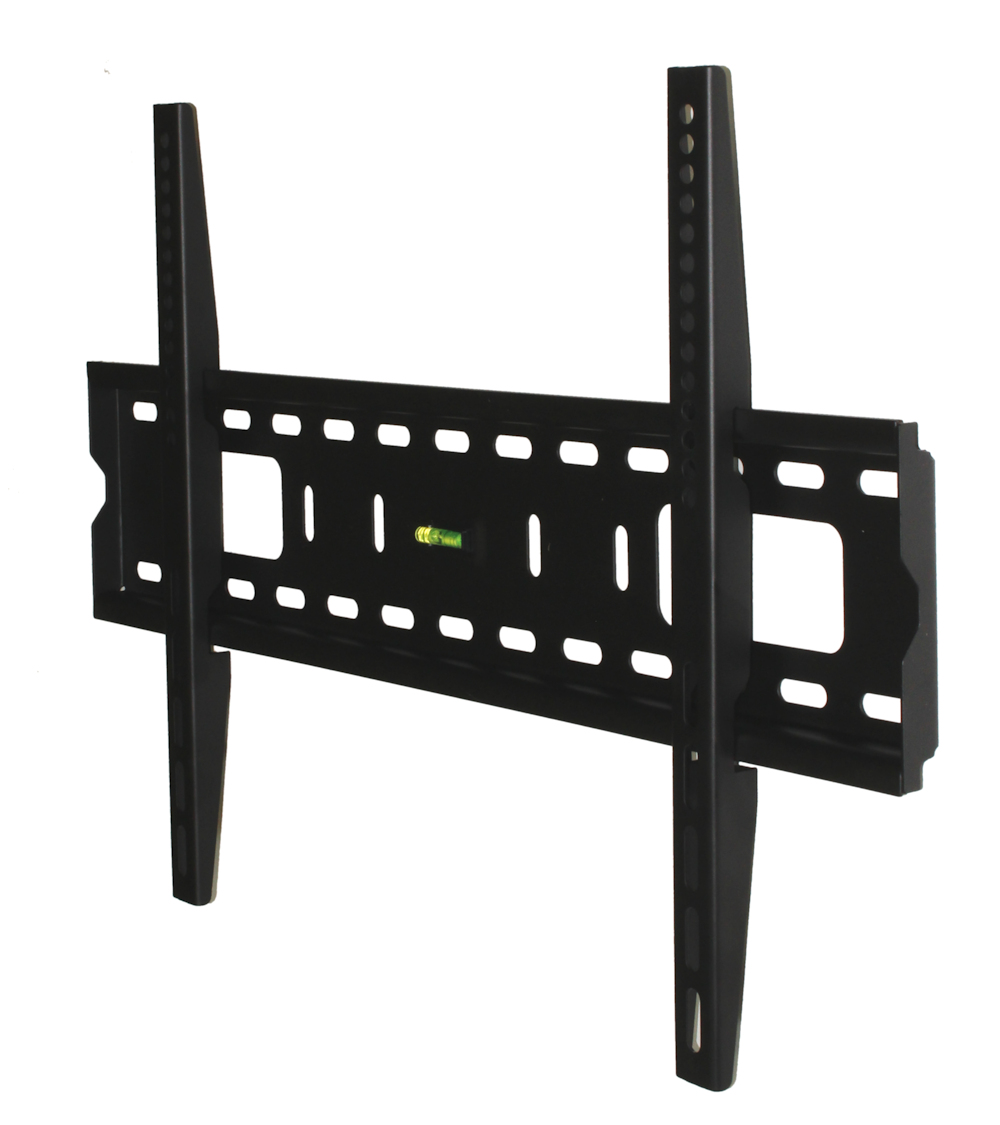

This is Flat Wall Bracket for LCD Plasma. This Flat Wall Mount supports most 37" to 70" flat panel screen and plasma TVs up to 165 lb weight. The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.
Compatibility:
  • Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 625x400.
  • Mounting holes on television should be 24.6" or less apart horizontally & 15.75" or less apart vertically
  • Maximum weight capacity: 165lbs/75kg

    Dimensions:
  • Wall plate: 26" x 6" (Approx)
  • Arm Measurements: 17.3" x 1 1/8"
  • Measurements are from edge to edge. Mounting points for bolts will be shorter.

    Range of Motion:
  • Tilt: Fixed
  • Swivel: None
  • Extension from wall: 1.42" when parallel to the wall

    Design & Construction:
  • Solid toughened steel construction
  • Durable scratch resistant
  • Black Finish
  • Easy installation
  • Bubble Level
  • Lockable Mechanism!

    Included in Box:
  • Mount
  • Mounting hardware


    Mounting your TV onto Brick, Masonry, or Concrete? Check out our Anchor Bolts
    Mounting your TV directly onto Drywall? Check out our Drywall Mount Kits

    NOTICE: All returned TV mounts are subject to a 10% re-stocking fee. All TV mounts, however, have a 1 year replacement warranty (not subject to ANY restocking fee).
