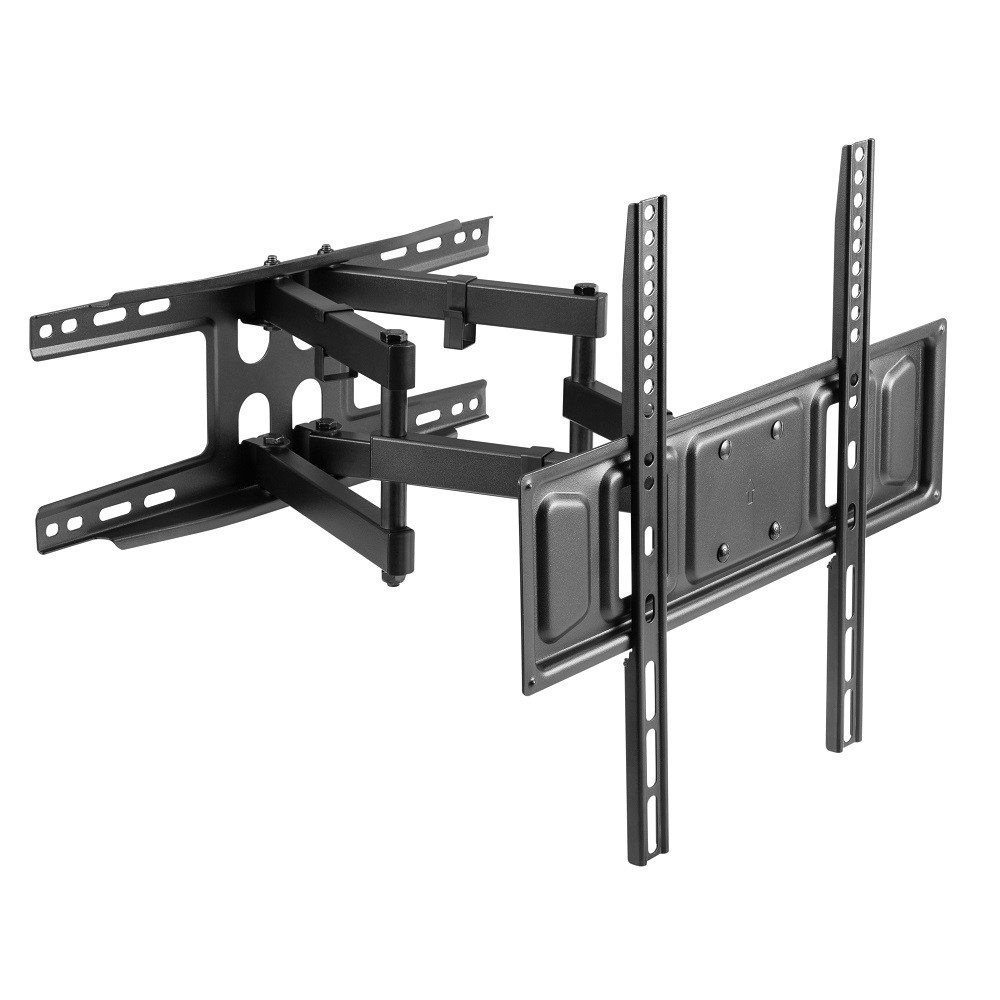

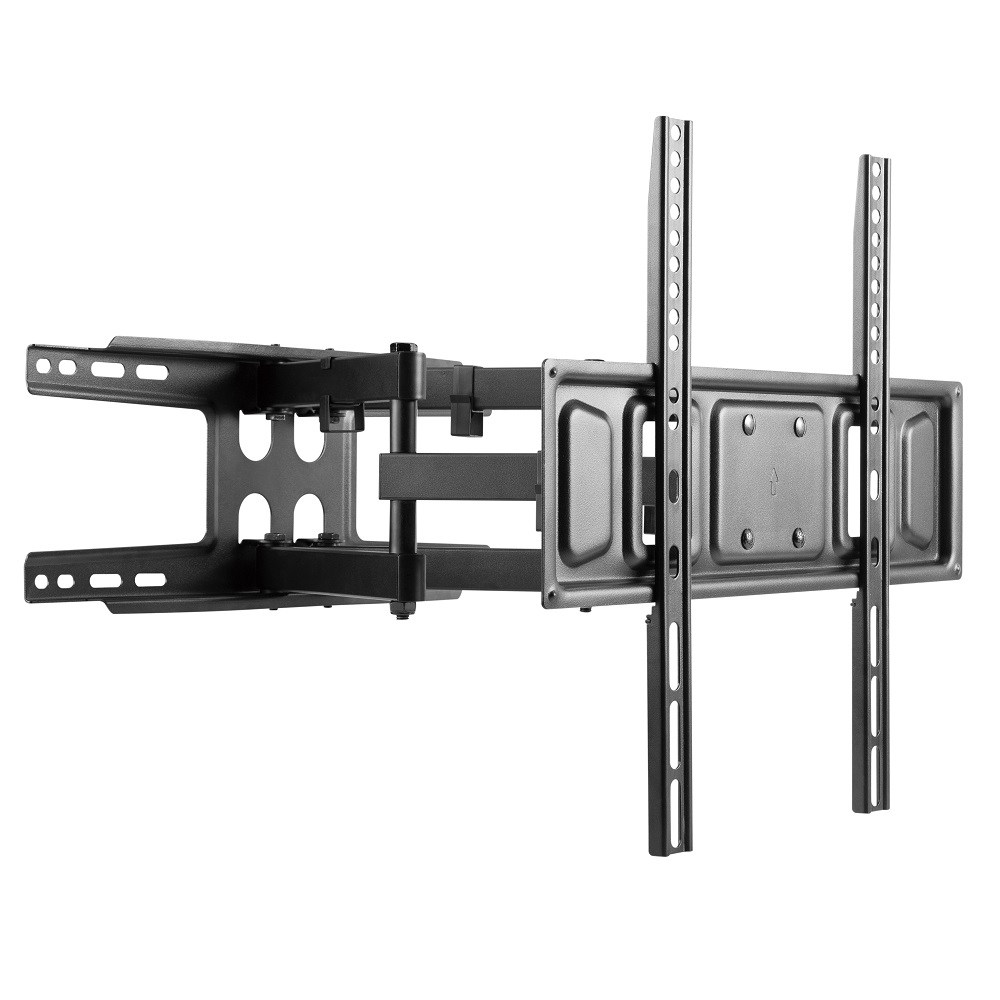

FULL MOTION 2-ARM Wall Mount Bracket 37-70 TVs to 88 lbs, Black
|
|
|
|
|
|
|
Lengths Available: |
32-55in, 32-55in, 37-70in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-LPA36-443A, LU-LPA49-443, LU-LPA63-446, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
32 - 70, 88lbs Max |
|
VESA Type / Style: |
VARIABLE / FULL MOTION |
Vesa Specs (WxH) mm: |
FROM 75x75 TO 400x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 3.0" (W) x 3.0" (H) TO: 15.7" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|
| |
Adjustable Tilting up/down (+5 degrees UP, -15 degrees DOWN) and Swivel left/right (+-60 degrees side to side) Wall Mount Bracket for LCD Plasma (Max 88Lbs, 32-70inch) - This is an angle adjustable wall bracket for any larger flat panel LCD, LED, or Plasma TV. The REAR mounting plate is approx 18.7''W x 7.25''H. This mount can be single stud mounted (see note below).
Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 400x400.
Mounting holes on television should be 15.9'' or less apart horizontally & 15.9'' or less apart vertically
Maximum weight capacity: 88lbs
Wall Back mount plate:18.7" W x 7.25'' H
TV Front mount plate: 17.9" W x 5.3" H
Tilt: Up to 5 degrees upward & 15 degrees down (variable)
Swivel: -60 to +60 degree rotation (left/right depending on TV size and location from wall)
Mount continues to allow for left/right swivel after mounting, with tension controllable via supplied hex tool
Extension from wall: 2.4"'' Min, 18.4'' Max.
Solid toughened steel construction
Durable scratch resistant
Black Finish
Easy installation
Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
Metric Mounts Bolts Supplied: M5x14, M6x14, M6x30, M8x30, M8x50, spacers, washers, and 4 Lag Bolts supplied
|
