Lengths Available: |
32-55in, 32-55in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, each, |
|
Colors Available: |
|
|
Part Numbers this model: |
LU-LPA36-443A, LU-LPA49-443, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, LU-RET-LPA49-486, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
43 - 70, 72lbs Max |
|
VESA Type / Style: |
VARIABLE / FULL MOTION |
Vesa Specs (WxH) mm: |
FROM 200x200 TO 600x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 7.9" (W) x 7.9" (H) TO: 23.6" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|

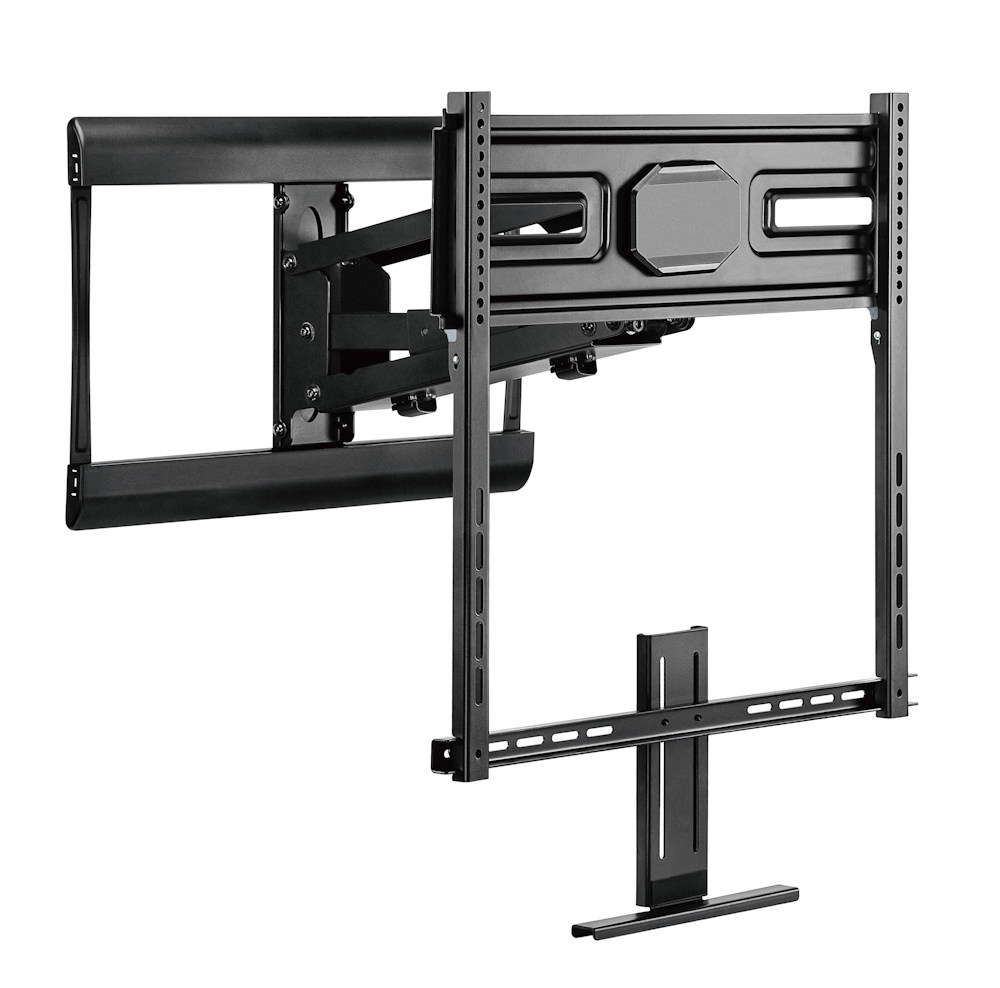

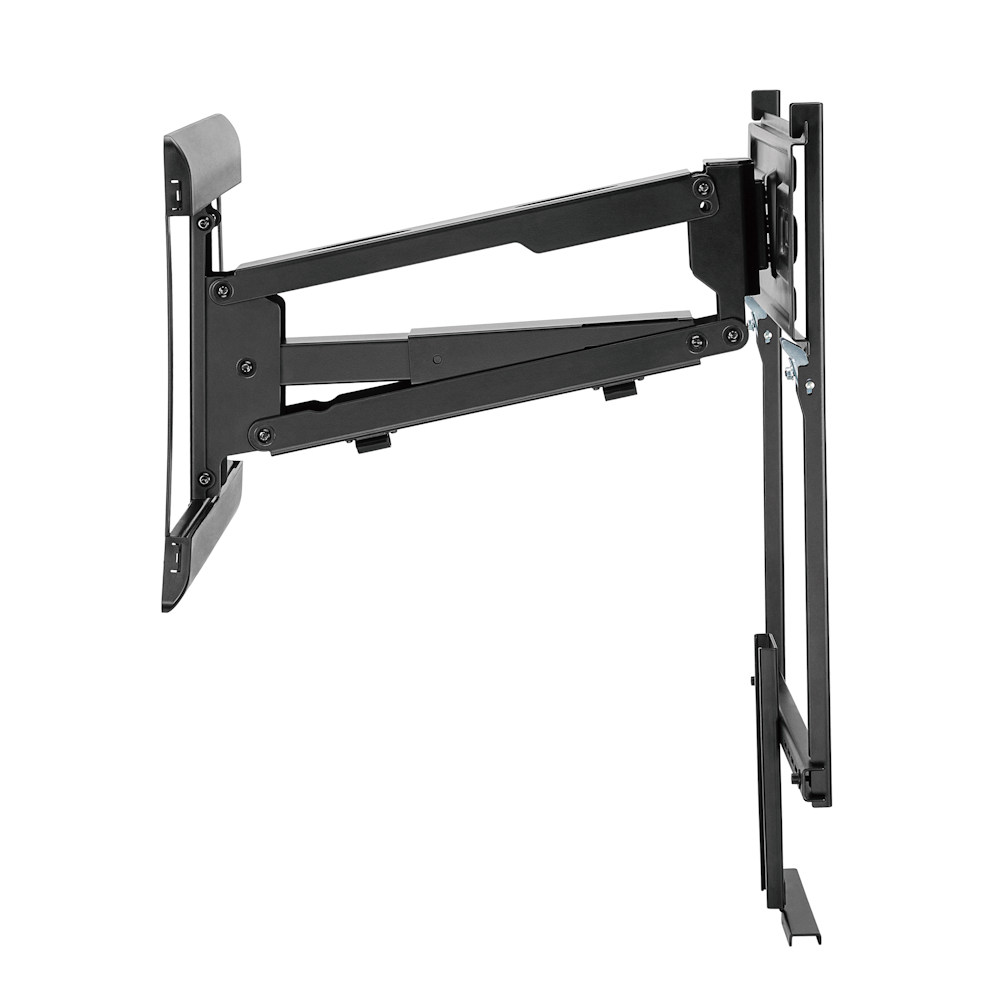

This TV mount is especially designed for mounting ABOVE a fireplace, with the ability to drop it down to floor level when wanting to watch TV. An internal gas-spring system allows you to return the TV back to the upright, against wall position with a minimal amount of effort. The mount features a 30 degree swivel range, and a 3 degree screen level. The adjustable spring mechanism allows you to change the weight of the mount from 15KG to 35KG (approx. 28 to 72lbs). Cable management clips keep your wires organized for a clean look.
Intended to be mounted above the fireplace mantel, the LPA53N-461 has the features you need to take advantage of the space above your fireplace, the perfect location for your TV. When not in a viewing position the heavy-duty steel constructed mount provides a solid hold for even the largest TV's. Grab the handle and pull your mounted TV "down and out" to view your favorite shows from nearly every possible viewing angle. The quality gas spring design offers smooth and effortless movement while the built-in cable management contributes to an elegant mess-free appearance. Please note: Operating your fireplace while viewing your TV in a down position is not recommended as heat from the fireplace may damage your valuable electronic equipment. The lowering handle is adjustable in height to accommodate different TV sizes (from 1.2" to 8.3" from bottom of mount plate).
Compatibility and Features- Will fit most mid to large-sized flat panel LCD, LED, or plasma TVs with mounting patterns up to VESA 600x400.
- Maximum weight capacity: 72lbs
- Tilt: Variable 3-9 degree downward tilt in the DOWN position.
- Adjustable Weight Spring: 28 to 72lbs
- Lowers TV up to 24.8 inches from parked recessed to down position
- Swivel Range: 30 degrees left and right
- Rear plate dimensions: 25.25" W x 16.6" H
- Profile from wall: 6.3" (when parked) to 23.1 (when lowered)
- Screen Level (Fine Adjust): 3 degrees both ways
- Curved TV support when supplied bushings used during installation process
Please carefully view the VIDEO and click the TECH DOC PDF, and double check your measurements before ordering this somewhat complex TV mount.
