Lengths Available: |
32-55in, 32-55in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, each, |
|
Colors Available: |
|
|
Part Numbers this model: |
LU-LPA36-443A, LU-LPA49-443, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, LU-RET-LPA49-486, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
42 - 90, 165lbs Max |
|
VESA Type / Style: |
VARIABLE / FULL MOTION |
Vesa Specs (WxH) mm: |
FROM 200x200 TO 800x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 7.9" (W) x 7.9" (H) TO: 31.5" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|

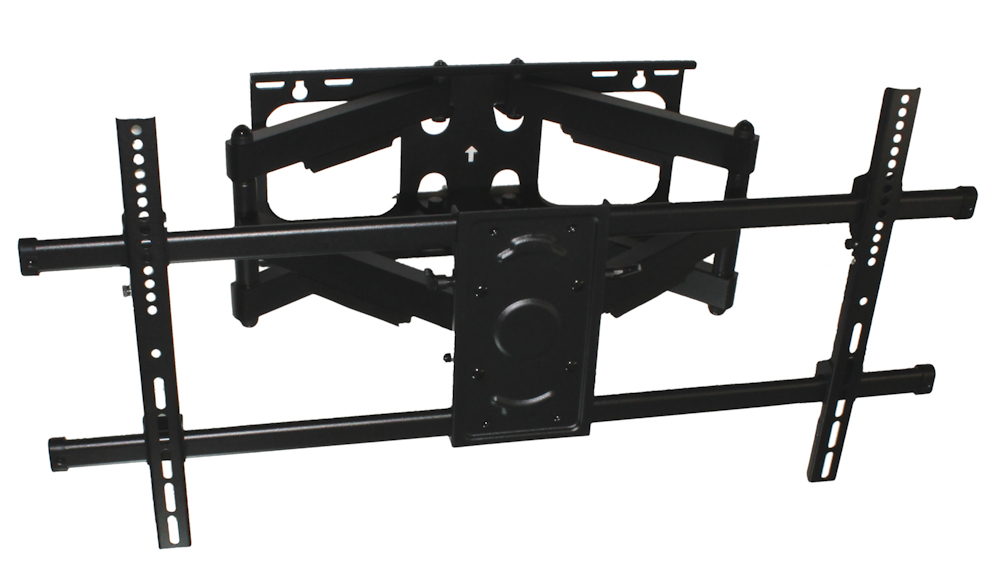

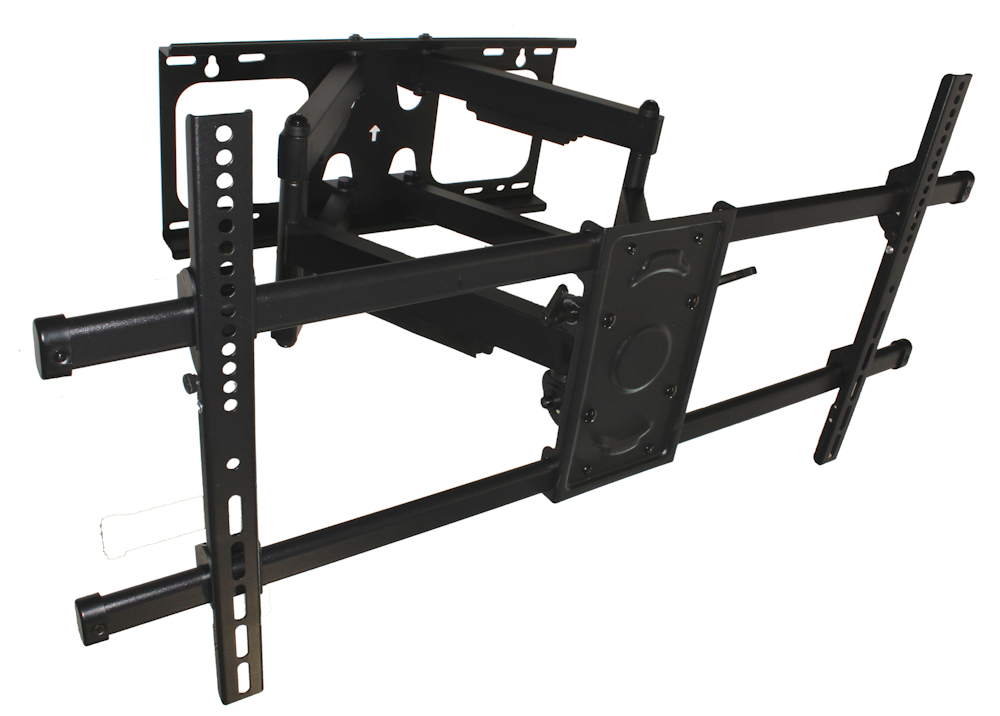

Adjustable Tilting down (15 degrees), Up (5 degrees) and Swivel left/right Wall Mount Bracket for LCD Plasma (Max 165Lbs, 37-90inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most any 42in to 90in LCD, LED, or and plasma TVs up to 165 lb weight that comply with VESA mounting standards. The mount provides for a 3 degree (+/-) leveling adjustment via loosen/tighten front 4 mount bolts.
Compatibility:
- Will fit most mid to large-sized flat panel LED, Plasma and LCD TVs with mounting patterns up to VESA 816x410.
- Mounting holes on television should be 31.5" or less apart horizontally & 15.75" or less apart vertically
- Maximum weight capacity: 165lbs
Dimensions:
- Wall Back mount plate: 20.5W x 9.4H"
- Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
- Tilt: 15 degrees down (variable) or 5 degrees up
- 3 degree leveling adjustment (loosen/tighten 4 bolts on front plate)
- Swivel: full motion, left/right depending on TV size and location from wall
- Extension from wall: 2.7" to 25"
Design & Construction:
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
Included in Box:
- Mount
- Mount Level built in to front plate for perfectly level mounting!
- Mounting template allowing for quick and easy installation
- Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
- Mount bolts included: (4) M4x16, (4) M5x16, (4) M6X16, (4) M8X16
- User manual
|
