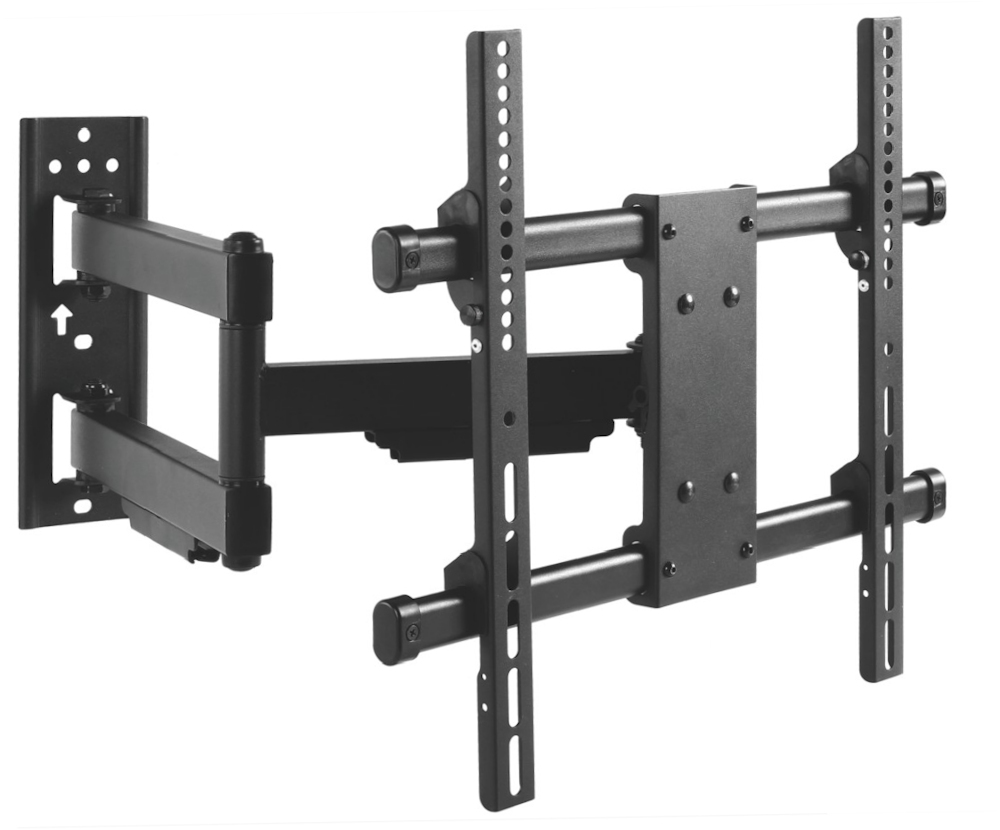

FULL MOTION 1-ARM 24"" Wall Mount Bracket 32-55 TVs Narrow Plate, Black


 Lengths Available: 32-55in, 32-55in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, each,
 Colors Available: Black
 Part Numbers this model: LU-LPA36-443A, LU-LPA49-443, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, LU-RET-LPA49-486,

 Sales Category: TV Mounts  Approx TV Size / Weight: 32 - 55, 110lbs Max
 VESA Type / Style: VARIABLE / FULL MOTION  Vesa Specs (WxH) mm: FROM 200x200 TO 400x400
   Mount Holes (WxH):  RANGE FROM: 7.9" (W) x 7.9" (H) TO: 15.7" (W) x 15.7" (H)  Supports Curved TVs?: No

The new solid large full motion mount is constructed with high gauge steel that designed for most 32"-55" flat panel TVs up to 50kg/110lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (615mm extension) and angled towards a separate viewing area. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look. This mount can be single stud mounted (see note below).

The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for corner mounting, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.
    Compatibility:
  • Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 400x400.
  • Mounting holes on television should be 16.4" or less apart horizontally & 16.1" or less apart vertically
  • Maximum weight capacity: 110lbs/50Kg

    Dimensions:
  • Wall Back mount plate width: 3.5"
  • Wall Back mount plate height: 11"
  • Measurements are from edge to edge. Mounting points for bolts will be shorter.

    Range of Motion:
  • Tilt: up to 5 degrees, down 15 degrees
  • Swivel: -90 to +90 degree rotation (depending on TV size and location from wall)
  • Extension from wall: 3.75 to 24.2"

    Design & Construction:
  • Solid toughened steel construction
  • Durable scratch resistant
  • Black Finish
  • Easy installation

    Included in Box:
  • Mount
  • Mounting hardware
  • Mount bolts included: (4) M4x30, (4) M5x30, (4) M6X30, (4) M8X40, (4) M5X16, (4) M8X16

Please Note: Retail box or supplied documentation may indicate this mount is suitable for a different sized TV. CEDIA (Consumder Electronics Design and Installation Association) has provided us with a REVISED recommendated TV size range based on a TV mount's VESA and/or bolt width/height measurements. This revision has generally INCREASED the size capacities of smaller TV mounts as many larger TVs are now much lighter than previous models. We are now using these RECOMMENDED TV Size measurements when stating the approximate TV size ranges that this mount may be suitable. Please DOUBLE CHECK your TVs VESA SIZE and/or mount hole widths and heights and compare these measurements to our clearly published hole width and height size ranges shown above

IMPORTANT INSTALLATION NOTE: The SINGLE STUD solution should only be performed if you are able to "center
mount" it on that single stud. You should also be ABSOLUTELY SURE that you are locating your lag bolts in the CENTER of the wooden stud. If you are unable to "center mount" (which means that you are putting the lag bolts through the mount plate in the CENTER of the mount plate), you must mount in such a manner that you are using 2 studs.
