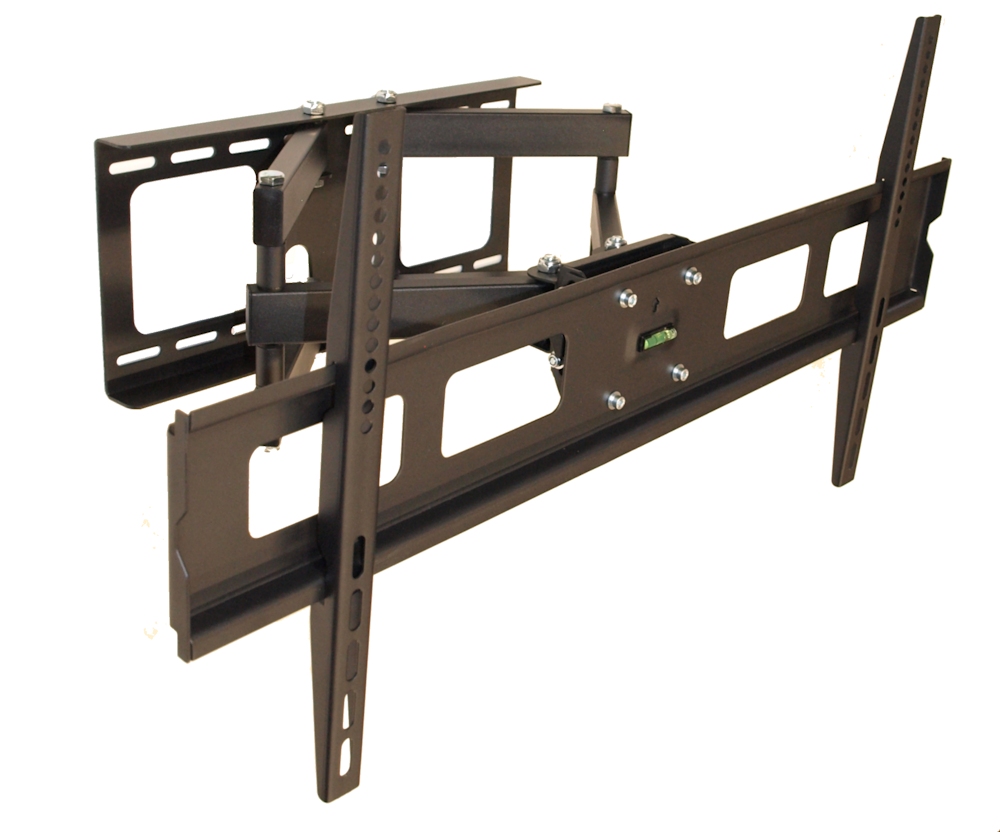

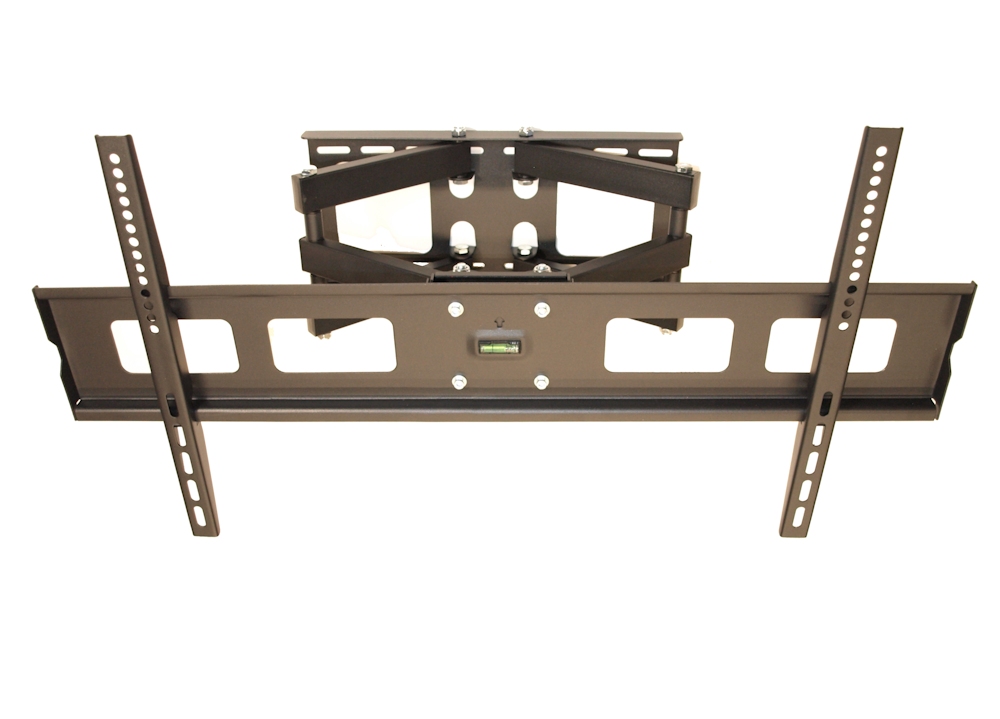

FULL MOTION 2-ARM Wall Mount Bracket 42-74 TVs to 132 lbs, Black
|
|
|
|
|
|
|
Lengths Available: |
32-55in, 32-55in, 37-80in, 37-90in, 42-74in, 42-90in, 43-70in, each, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-LPA36-443A, LU-LPA49-443, LU-LPA63-466, LU-LPA72-464, LU-LPA13-484, LU-LPA49-486, LU-LPA53N-461, LU-RET-LPA49-486, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
42 - 74, 132lbs Max |
|
VESA Type / Style: |
VARIABLE / FULL MOTION |
Vesa Specs (WxH) mm: |
FROM 200x200 TO 800x400 |
|
Mount Holes (WxH):
RANGE |
FROM: 7.9" (W) x 7.9" (H) TO: 31.5" (W) x 15.7" (H) |
Supports Curved TVs?: |
Yes |
|
| |
Adjustable Tilting up/down (+15 degrees UP, -15 degrees DOWN) and Swivel left/right (+-45 degrees side to side) Wall Mount Bracket for LCD Plasma (Max 132Lbs, 37-70inch) - This is an angle adjustable wall bracket for LCD or Plasma TV's. This Flat Wall Mount supports most any 37in to 70in flat panel screen and plasma TVs up to 132 lb weight that comply with VESA mounting standards.
The REAR mounting plate is approx 18.1"W x 8.1"H. This mount can be single stud mounted (see note below).
The slim wall plate keeps the screen close to the wall for a very discreet installation that is perfect for boardrooms, digital signage, or home theaters. The mount includes simple to align brackets and a unique wall plate that can be mounted to a single wood stud, two wood studs, or concrete.
Compatibility:
- Will fit most small to mid-sized flat panel plasma and LCD TVs with mounting patterns up to VESA 800x400.
- Mounting holes on television should be 32.5" or less apart horizontally & 15.9" or less apart vertically
- Maximum weight capacity: 132lbs
Dimensions:
- Wall Back mount plate:18.1" W x 8.1" H"
- TV Front mount plate:
- Measurements are from edge to edge. Mounting points for bolts will be shorter.
Range of Motion:
- Tilt: up to 15 degrees upward & 15 degrees down (variable)
- Swivel: -45 to +45 degree rotation (left/right depending on TV size and location from wall)
- Mount continues to allow for left/right swivel after mounting, with tension controlable via supplied hex tool
- Extension from wall: 4.9" Min, 20.25" Max.
Design & Construction:
- Solid toughened steel construction
- Durable scratch resistant
- Black Finish
- Easy installation
Included in Box:
- Mount
- Mount Level built in to front plate for perfectly level mounting!
- Mounting hardware (Screws to go into back of TV & Fittings for brick and stud walls)
- Metric Mounts Bolts Supplied: M5, M6, M8 in both 15mm and 30mm lengths. 4 Lags Bolts supplied
- User manual
|
