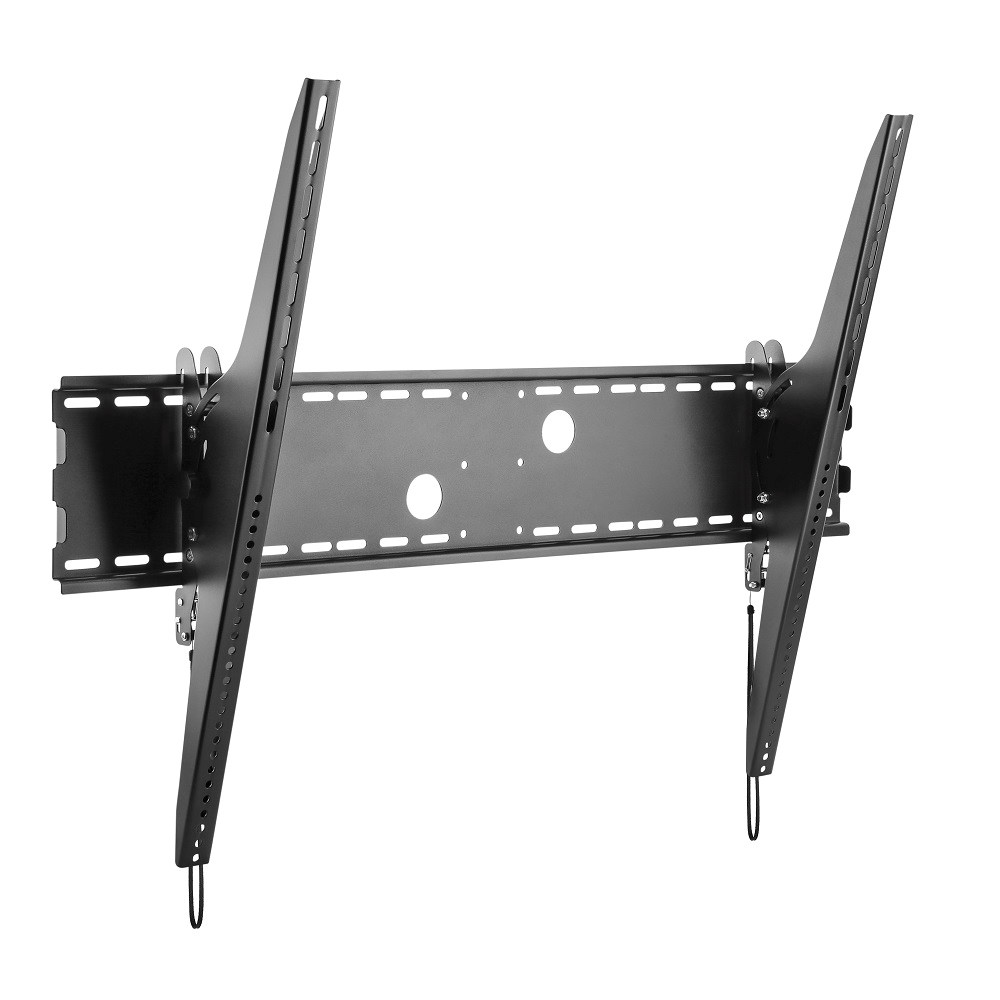

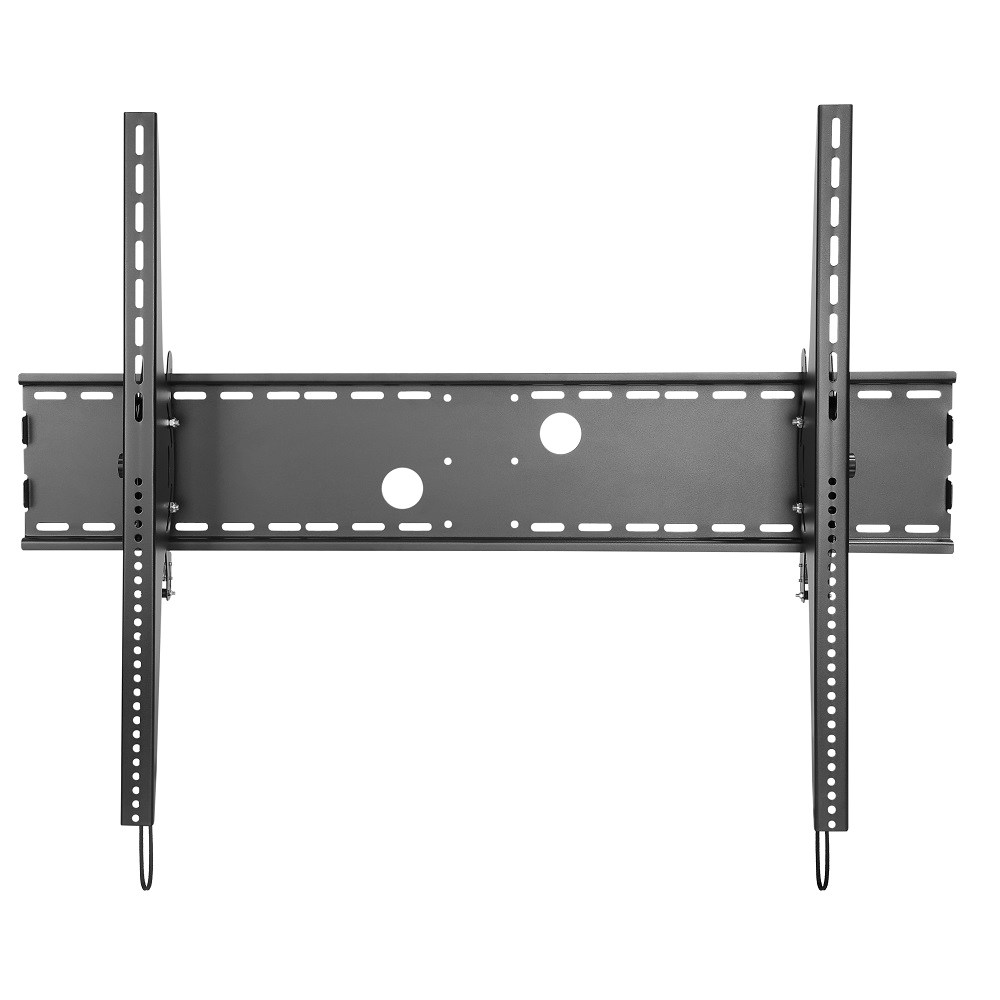

TILT ONLY Wall Mount Bracket 60-100 TVs to 220 lbs, Black
|
|
|
|
|
|
|
Lengths Available: |
32-55in, 37-70in, 42-80in, 43-90in, 60-100in, |
|
Colors Available: |
Black
|
|
Part Numbers this model: |
LU-KL21G-44T, BE-502688BK, LU-PLB-35XL, LU-LP59-48T, LU-LP37-810T, |
| |
|
|
Sales Category: |
TV Mounts |
Approx TV Size / Weight: |
60 - 100, 220lbs Max |
|
VESA Type / Style: |
VARIABLE / TILT ONLY |
Vesa Specs (WxH) mm: |
FROM 200x200 TO 1000x800 |
|
Mount Holes (WxH):
RANGE |
FROM: 7.9" (W) x 7.9" (H) TO: 39.4" (W) x 31.5" (H) |
Supports Curved TVs?: |
Yes |
|
| |
This large, heavy-duty tilting TV mount that can hold your large TVs up to 100in size and 220lbs in weight firmly. Sturdy steel construction provides solid and long-lasting performance. High quality power-coated finish provides a stylish anti-scratch surface. Width adjusts to fit most larger TV sizes. Open architecture allows for increased ventilation and easier access to wires. Tool-less tilt allows for effortless positioning. Automatic spring locks with quick release cords allow for quick and easy TV removal.
Compatibility
Will fit most large-sized flat panel LCD, LED, or plasma TVs with mounting patterns up to VESA 1000x800.
Mounting holes on television should be 39.4" or less apart horizontally & 31.5" or less apart vertically.
Maximum weight capacity: 220lbs
Dimensions
Rear Wall plate: 44.9"W x 8.6"H
Measurements are from edge to edge. Mounting points for bolts will be shorter. Please see above.
Range of Motion
Tilt: 15 degrees up, to 15 degrees DOWN (adjustable)
Swivel: None
Extension from wall: 5.1" when parallel/flat to the wall
Design & Construction
Solid toughened steel construction
Durable scratch resistant finish in Black
Easy installation
Curved TV Support
Included in Box
Mount
Mounting hardware
Mount bolts included: (4) M5x14, (4) M6x14, (4) M6x30, (4) M8x30, (4) M8x50
Washers and Spacers: (4) M8/M6/M5 Washer, 6 round washers, 4 spacers, 4 concrete anchors
User manual
|
