4-Pack, TV Mount Anchor Bolt Kit for Brick, Masonry, or Concrete


 Lengths Available:
 Colors Available:
 Part Numbers this model: LA-HN1614

 Sales Category: TV Mounts  Approx TV Size / Weight: - , lbs Max
 VESA Type / Style: /  Vesa Specs (WxH) mm:
   Mount Holes (WxH):  Supports Curved TVs?:

Secure your TV mount to masonry, brick, or concrete using this 4-pack anchor bolt kit!

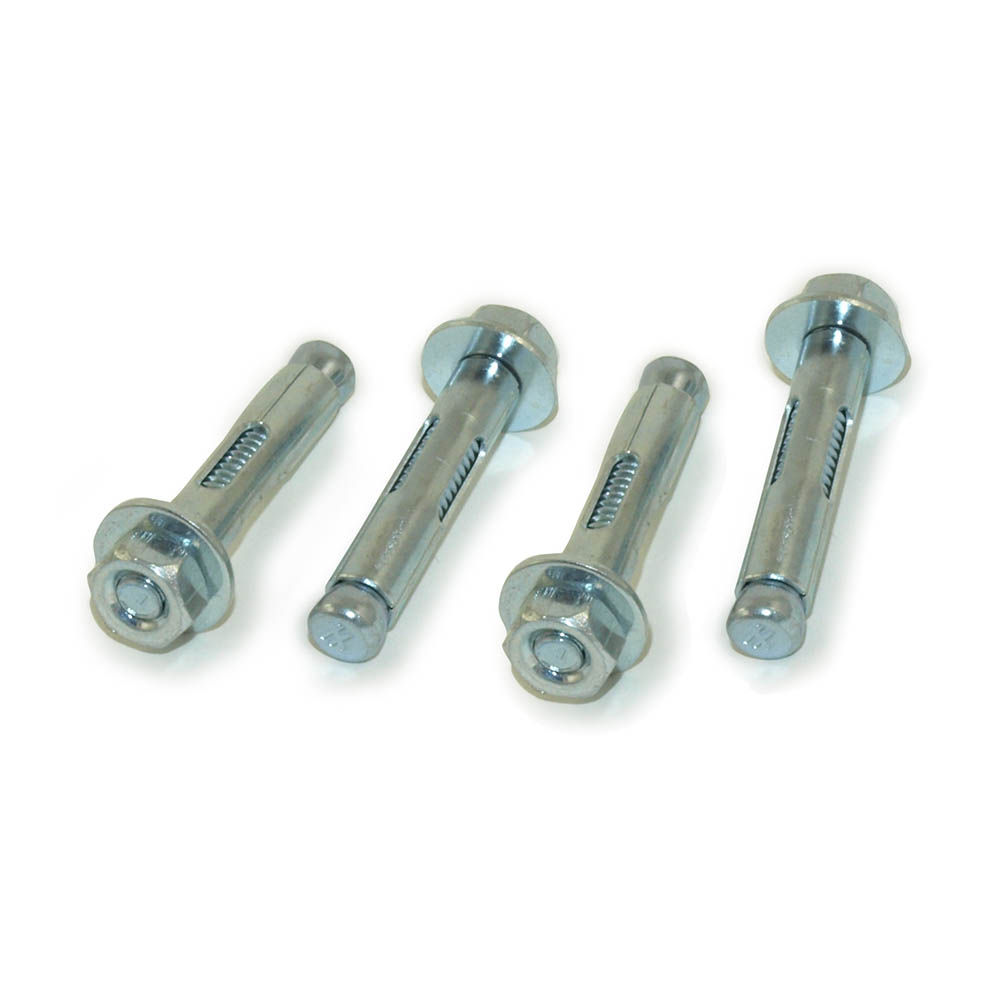

Red Head 5/16 In. x 1-1/2 In. Sleeve Anchor, Hex Head, Single Count

  • For fastening applications in concrete, block, and brick.
  • Contractor grade anchors.
  • Anchor diameter equals hole diameter.
  • Approvals/Listings:
  • Factory Mutual
  • Group II, Type 3, Class 3
  • California State Fire Marshall
  • Meets or exceeds Government G.S.A. Specification FF-S-325
  • We ship these in a package of four (4), which should meet MOST TV mount needs.

Bolt Installation Instructions:
1) DRILL using the same diameter drill bit as anchor. Remove dust and debris from hole (this is important, if you don’t clean it the dust acts as a lubricant and the system won’t work)
2) DRIVE anchor using hammer into the hole, keeping the nut on to protect the threads from being damaged, remove the nut and place the mount over the exposed threaded studs and place the washer and nut on the stud.
3) TIGHTEN the nut 2 to 3 turns until snug, his expands the anchor in the hole.
