Lengths Available: |
6in, 1.5ft, 3ft, 6ft, 10ft, 15ft, 20ft, 25ft, 35ft, 50ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
GC-HD-6IN, GC-HD-01, BE-181323, BE-181326, GC-HD-10, BC-HDMID-5MM, GC-HD-20, GC-HD-25-8, GC-HD-35-6, HA-HD-50-6, |
| |
|
|
Sales Category: |
HDMI/DVI Cables |
Wire Gauge (AWG): |
30 AWG |
|
Connector A: |
HDMI Standard Type A Male |
Specification: |
|
|
Connector B: |
DVI-D (Single Link) Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|

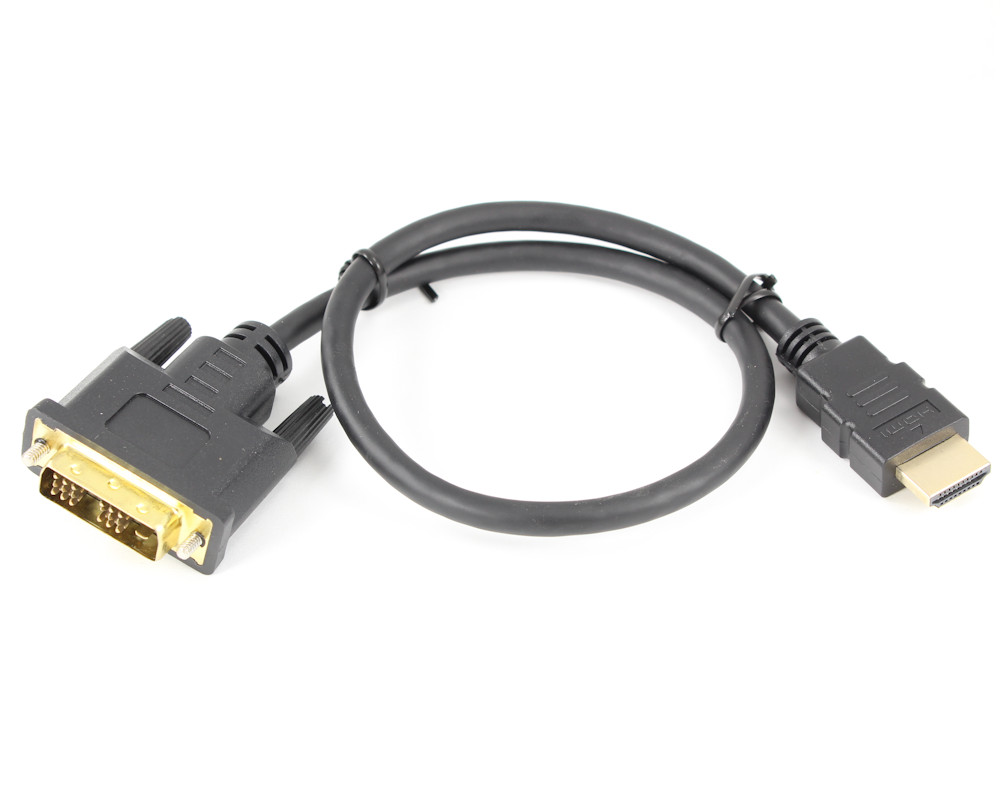

Images Length/Size Shown: |
1.5 FT |
|
# Positions: |
|
Shielding: |
Double Shielded |
|
Convert From/To: |
|
Type: |
|
|

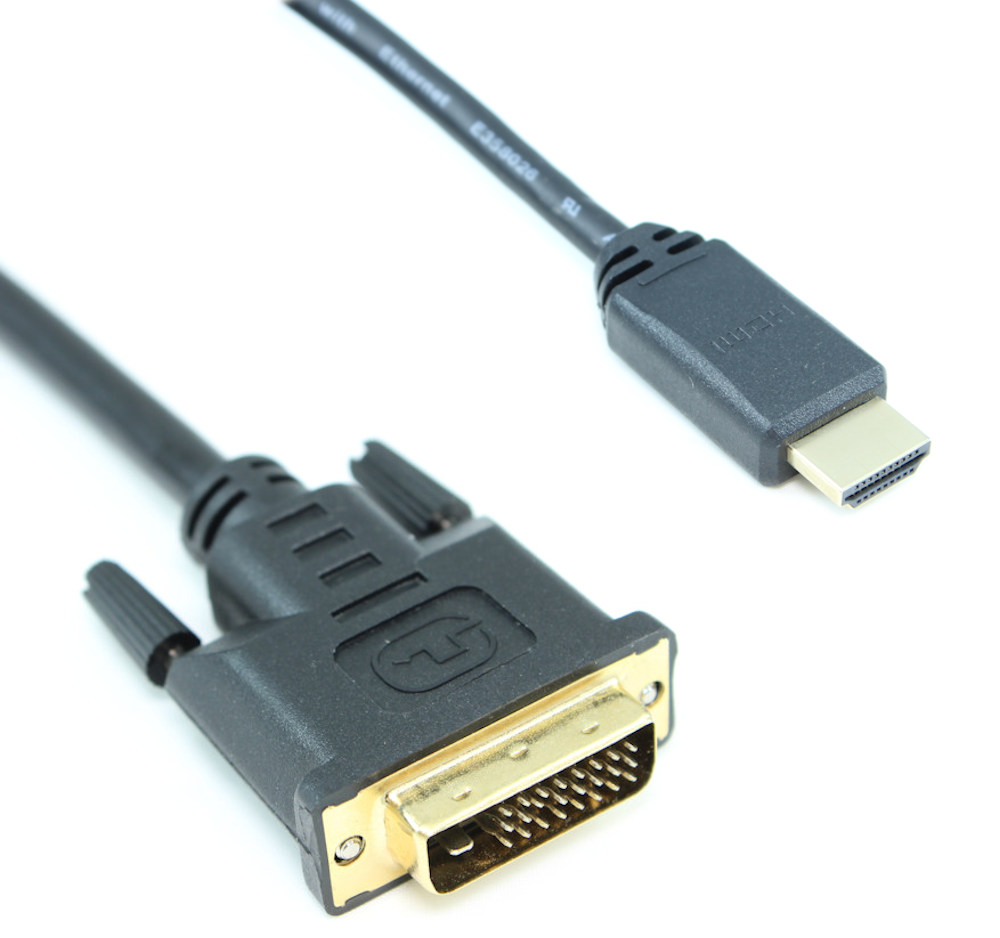

This "combo cable" allows a signal transmitted in EITHER HDMI or DVI-D (digital only) to be displayed in EITHER HDMI or DVI-D (digital only). DVI-D and HDMI share the same video digital encoding and are thus compatible without any electronic conversion. Because DVI-D ONLY supports video, this combo cable will NOT provide for the audio and must be provided using a different (additional) cable if needed.
- Connectors: DVI-D 18pin + 1 blade male to HDMI Type-A Standard Male
- Signal Type: Digital ONLY Video (no audio)
- Connector Finish: Gold Plated
- Gauge/AWG: 30AWG
- Shielding level: Triple
- Shielding type: EMI
- Ferrite Cores: No
- 1080p support Yes
- Maximum Resolution 1080P
- DDWG, HDCP, & RoHS Compliant
- RoHS 3 Compliant
- Operating Temperature to 80 degree C
- Cable Outer Diameter (OD): 8.0mm
- E358026, AWM Style: 20276
NOTE: This cable is NOT suitable for DVI-A (analog) connections as the HDMI standard is SINGLE LINK DIGITAL ONLY.
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
|
