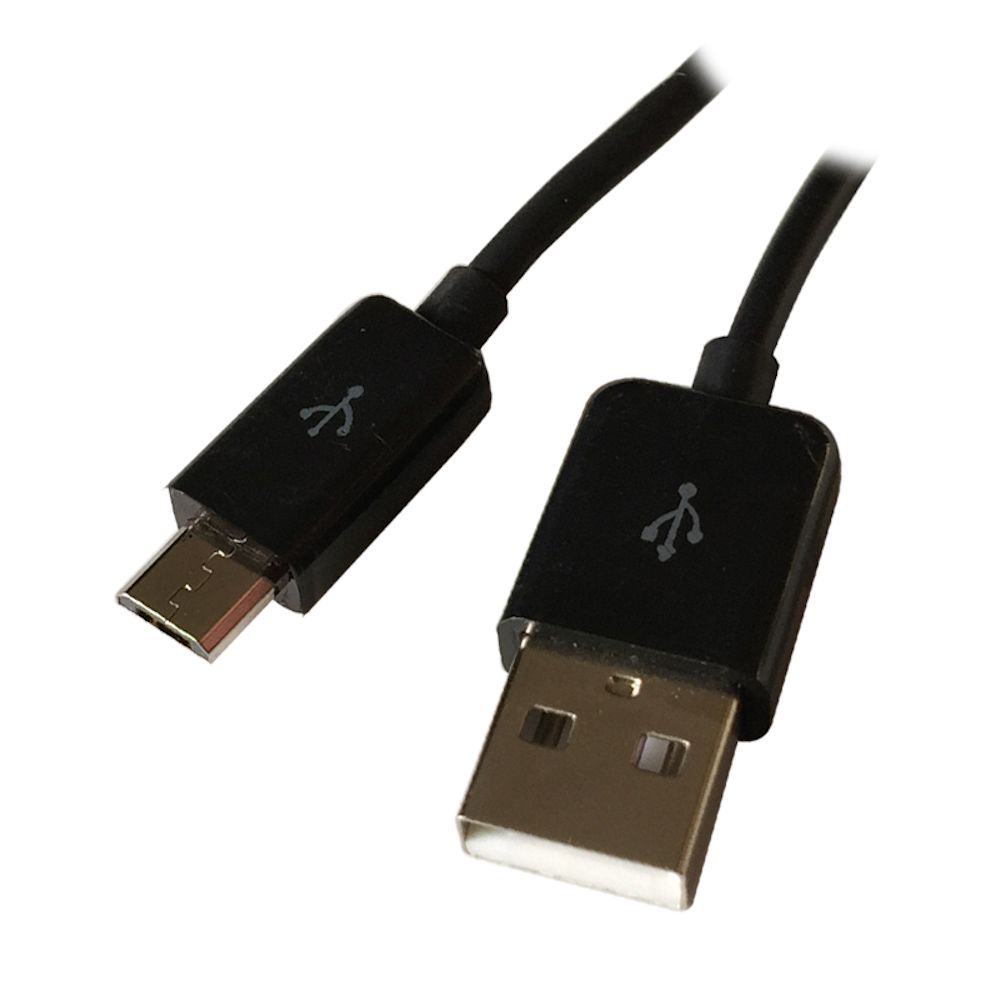

USB SLIM/High Amp Type A Male to Micro-B 5-Pin Cable, Nickel Plated

Lengths Available:	15ft,
Colors Available:
Part Numbers this model:	FE-USB-SACB5-15,

Sales Category:	USB Cables	Wire Gauge (AWG):	24 AWG, 28 AWG
Connector A:	USB Standard Type A Male	Specification:	USB 2.0
Connector B:	USB Type Micro-B Male	Number Ports:	N/A
Export Tariff Code (HST):	8544422000	Transfer Rate:	480Mbps
Feature / Style:	Data Transfer and Charge	Images Length/Size Shown:	15 FT
# Positions:		Shielding:	Shielded
Convert From/To:		Type:

This second generation HIGH AMPERAGE ULTRA SLIM Micro-B 5 pin charging and data cable is perfect for todays smart phone and tablets. The ULTRA SLIM design of the Micro-B connector allows for uses with my cases with tight connection requirements. Durable polished PVC finish.

Thicker 24AWG copper wire inside allows for rapid charging (compared to standard 28AWG).

Supports both CHARGING and DATA TRANSFER.

Cable Specifications:

28AWG (7/0.12mm Bare Copper) * 1 Pair (for Data transfer )
24AWG (7/0.2mm Bare Copper ) * 1C ( for power transfer, Positive charges )
Drain Wire (7/0.2mm Bare Copper )
Aluminum Braid, Outer Diameter:3.0MM
Polished Black PVC Finish
Contact Resistance: 1 ohm
Micro-B USB Connector Dimension - Length: 18mm, Width: 10mm, Height: 6.8mm
Type-A USB Connector Dimension - Length: 18mm, Width: 14.7mm, Height: 7.3mm
