REVERSIBLE USB 2.0 Type A Male to Micro-B 5-Pin Cable, Nickel Plated


 Lengths Available: 1.5ft, 3ft, 10ft,
 Colors Available:
 Part Numbers this model: FE-USB-RACB5-01, FE-USB-RACB5-03, FE-USB-RACB5-10,

 Sales Category: USB Cables  Wire Gauge (AWG): 24 AWG, 28 AWG
 Connector A: USB Standard Type A Male  Specification: USB 2.0
 Connector B: USB Type Micro-B Male  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate: 480Mbps
 Feature / Style: Data Transfer and Charge Images Length/Size Shown: 1.5 FT
# Positions: Shielding: Shielded
Convert From/To: Type:

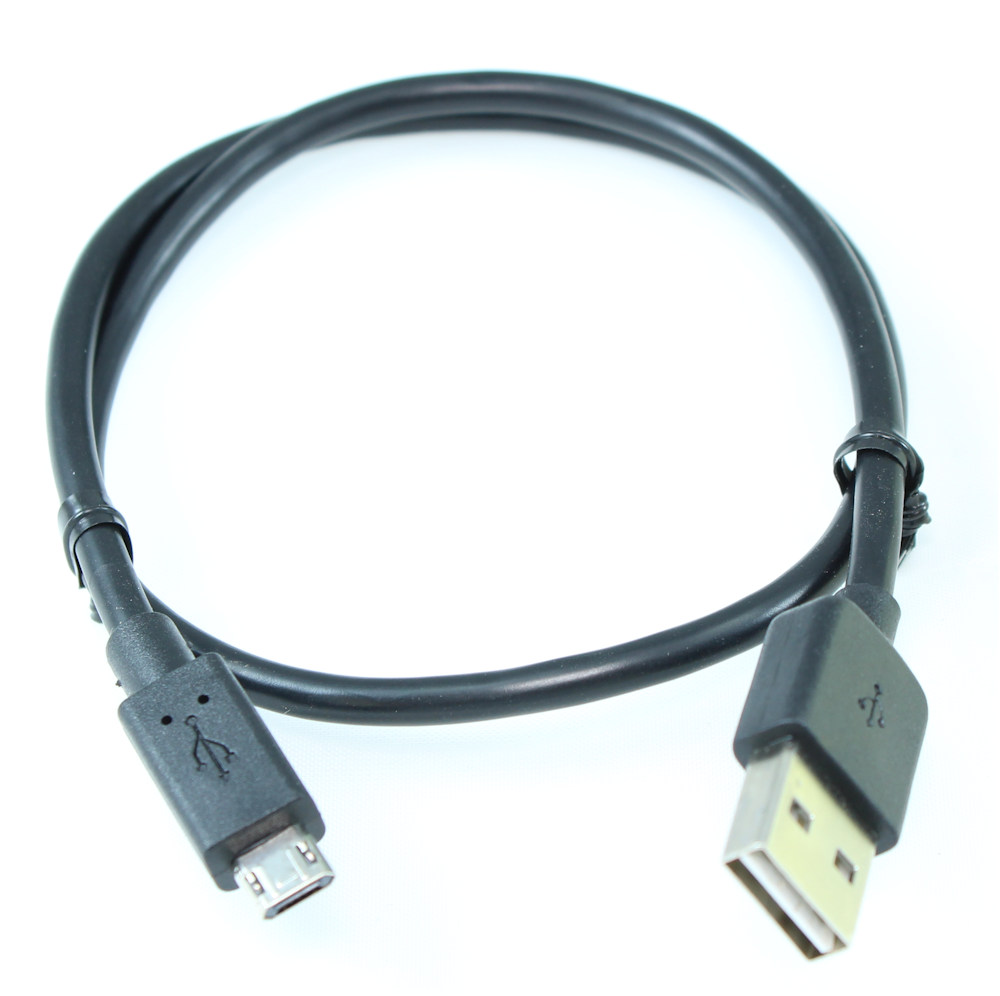

USB A Male to Micro USB 5 pin Male Cable, Black. This REVERSIBLE USB A to REVERSIBLE Micro USB B 5pin Cable provides one USB A Male connector, and one Micro USB B connector to create a simple way to connect mobile devices to a USB capable computer for every day tasks such as data synchronization and file transfers. Never again will you have to fumble to figure out if your MICRO-B or USB TYPE-A connector ends are properly oriented for the device, computer, or charging block!

This cables is the most common USB cable used to charge and transfer data for many SMART-PHONES using the Android and Windows operating system.

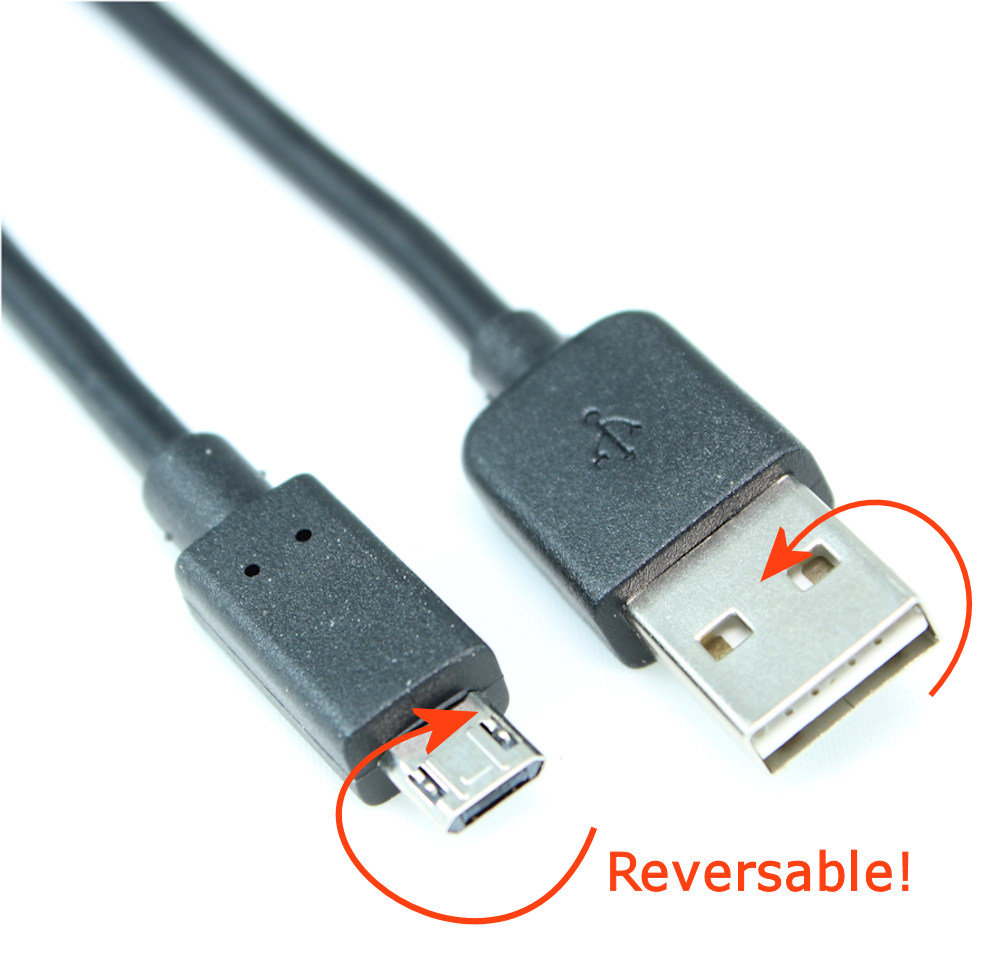

When comparing our cables to our competitors, please note the WIRE THICKNESS of 28AWG (1P) + 24AWG*2C. Most of our competitors use 28/28AWG cables resulting in signal loss, slower charging times, and overall amperage loss. Both the USB Type-A connector AND the USB Micro-B connector are fully "reversible", meaning that you no longer have to connect this cable with the standard orientation, allowing for much quicker insertion (especially on the Micro-B connector end)

Cable Specifications:
  • Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C
  • Shielding and Jacket Type: Aluminum foil shielding + drain wire 7/0.12mm pure copper
  • Connector A: USB 2.0 Type A Reversible
  • Connector B: USB 2.0 Micro-B 5pin Reversible
  • Wire: CU (Pure Copper)
  • RoHS Compliant
  • Outer Cable Diameter: 4.5mm.
