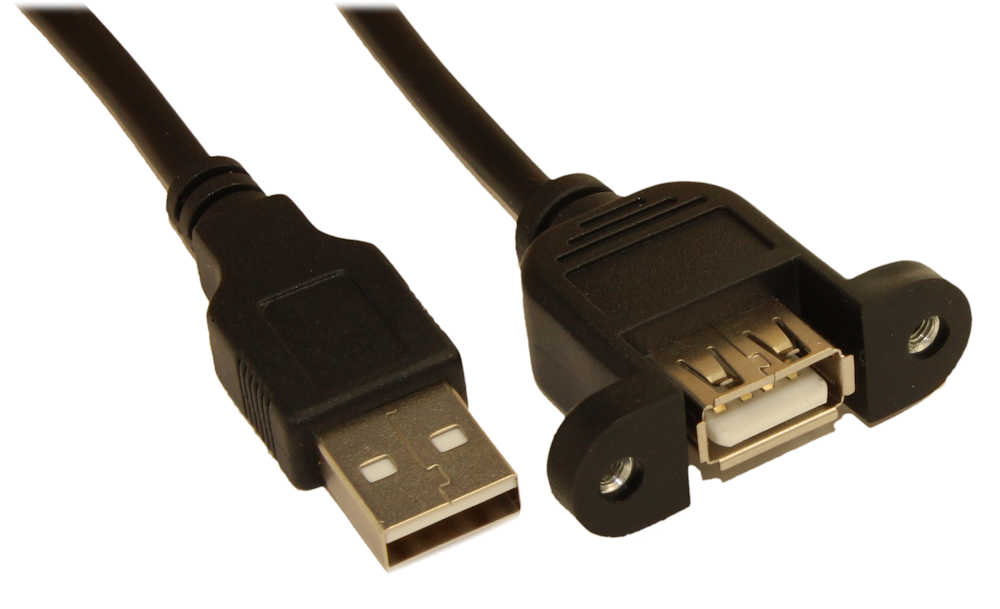

USB 2.0 Type A Male to A Female PANEL MOUNT Cable


 Lengths Available: 6in, 6in, 10in, 10in, 12in, 18in, 36in, 3ft, 3ft, 5ft, ea, ea, ea, each, each,
 Colors Available:
 Part Numbers this model: FE-USB-PM-6IN, FE-USBB-PM-6IN, FE-USB-PM-10IN, FE-USBB-PM-10IN, FE-USBB-PM-12IN, FE-USBB-PM-18IN, FE-USBB-PM-36IN, FE-USB-PM-03, FE-USB3-PM-03, FE-USB-PM-05, FE-USB-FCAP, FE-USB3C-FCAP, --FE-USBB-PM, --FE-USB2CC-PM, --FE-USAC-PM,

 Sales Category: USB Cables  Wire Gauge (AWG): 24 AWG, 28 AWG
 Connector A: USB Standard Type A Male  Specification: USB 2.0
 Connector B: USB Standard Type A Female  Number Ports: N/A
 Export Tariff Code (HST): 8544422000  Transfer Rate:
 Feature / Style: Images Length/Size Shown: 10 IN
# Positions: Shielding: Shielded
Convert From/To: Type:

This is a PANEL MOUNT product. Supports USB speed up to 480Mbp.

Technical Specifications:
  • USB v2.0 compliant
  • Supports Hi-Speed, 480 Mbps
  • Connector A: USB 2.0 Male
  • Connector B: USB 2.0 Female Panel Mount
  • Panel Connector Dimension: 11.8mm Width, 38.0mm Height
  • Panel Connector between bolt hole measurement: 29.0mm
  • Shielded (Foil), 100% Copper (CU)
  • 28AWG(7/0.12BC)*1P + 24AWG(7/0.2BC)*2C+AL+D
  • Nickel plated conductors
  • 2 Mounting bolts included
  • Cable Outer Diameter: 4.5mm
  • Color: Black
  • RoHS-2 Compliant

NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
