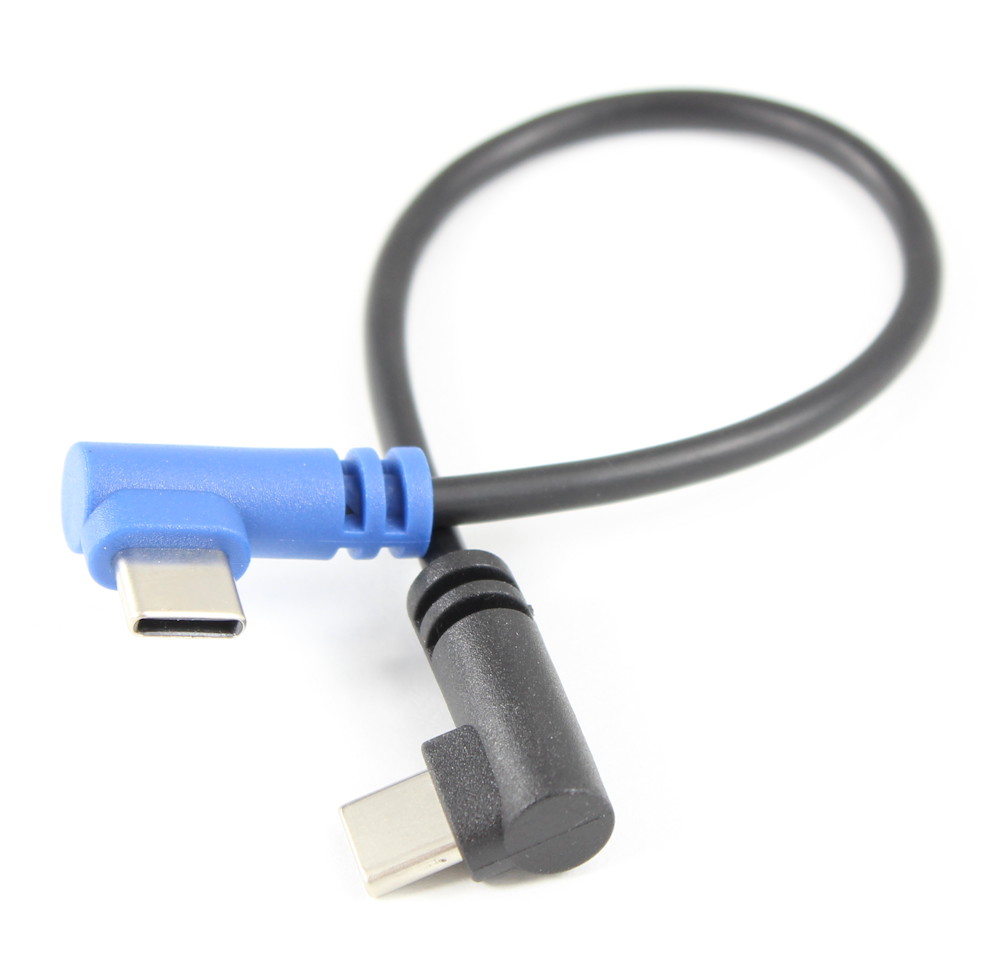

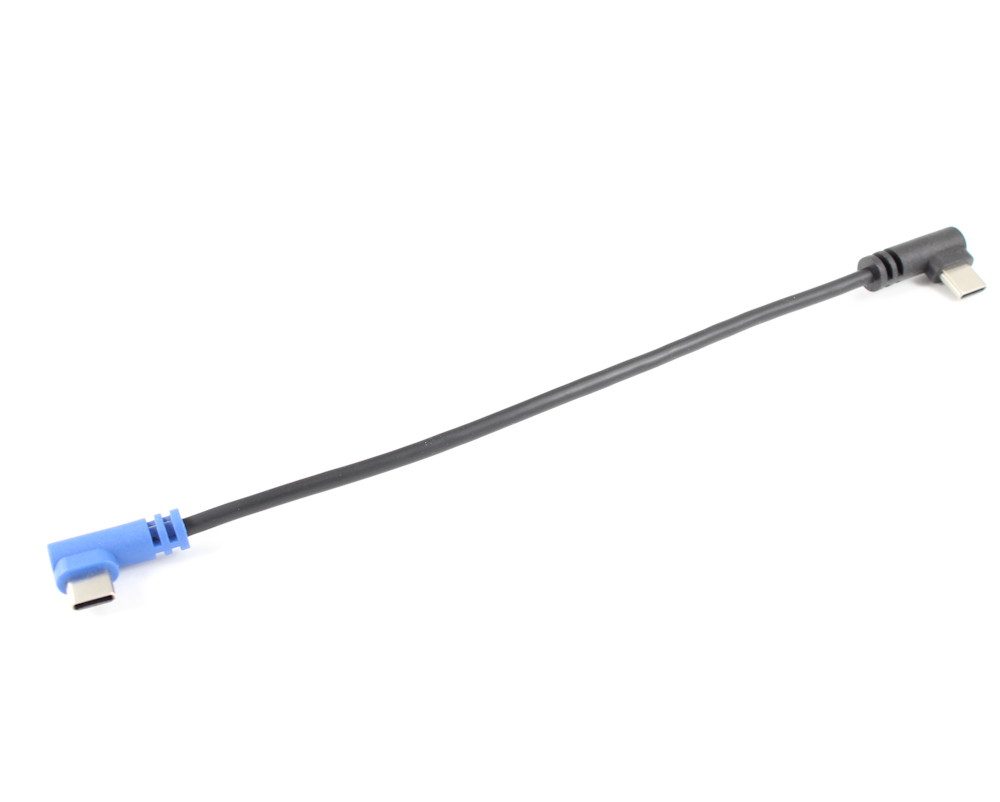

8 INCH USB 2 Type-C Male Angled to Type-C Male Angled Cable 480Mbps, Black
|
|
|
|
|
|
|
Lengths Available: |
|
|
Colors Available: |
Black
|
|
Part Numbers this model: |
FE-USB-CCH-8IN |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
Not Specific / Not Applicable |
|
Connector A: |
USB Type C Male |
Specification: |
|
|
Connector B: |
USB Type C Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
|
|
Feature / Style: |
|
Images Length/Size Shown: |
8 IN |
|
# Positions: |
|
Shielding: |
|
|
Convert From/To: |
|
Type: |
|
|
| |
IMPORTANT: This is an 8 inch cable assembly that was PREVIOUSLY custom manufactured for a specific customer. We now have these cables available for CLEARANCE.
Specifications:- Standard USB 2.0 Speed: 480Mbps
- Sync (at 480Mbps) and charge your USB Type-C equipped device simultaneously with this cable
- Power/charge up to 5v/2A/10w
- First, the BLUE end must be connector to power source. Second, the BLACK end is connected to receiving device (such as a smart-phone)
- See PDF technical drawing for pin-outs and 5.1K resistor location
NOTE: This product is a LOW VOLTAGE product never to exceed 1,000 volts, and is fitted with connectors that can be suitable for telecommunications
|
