Lengths Available: |
6in, 10in, 12in, 1.5ft, 2ft, 3ft, 6ft, 10ft, 15ft, |
|
Colors Available: |
|
|
Part Numbers this model: |
FE-USB-ANB5-6IN, FE-USB-ANB5-10IN, FE-USB-ANB5-12IN, FE-USB-ANB5-01, FE-USB-ANB5-02, BE-150117, FE-USB-ANB5-06, FE-USB-ANB5-10, FE-USB-ANB5-15, |
| |
|
|
Sales Category: |
USB Cables |
Wire Gauge (AWG): |
24 AWG, 28 AWG |
|
Connector A: |
USB Standard Type A Male |
Specification: |
USB 2.0 |
|
Connector B: |
USB Type Mini-B 5 Pin Male |
Number Ports: |
N/A |
|
Export Tariff Code (HST): |
8544422000 |
Transfer Rate: |
480Mbps |
|
Feature / Style: |
Data Transfer and Charge |
Images Length/Size Shown: |
10 FT |
|
# Positions: |
|
Shielding: |
Shielded |
|
Convert From/To: |
|
Type: |
|
|

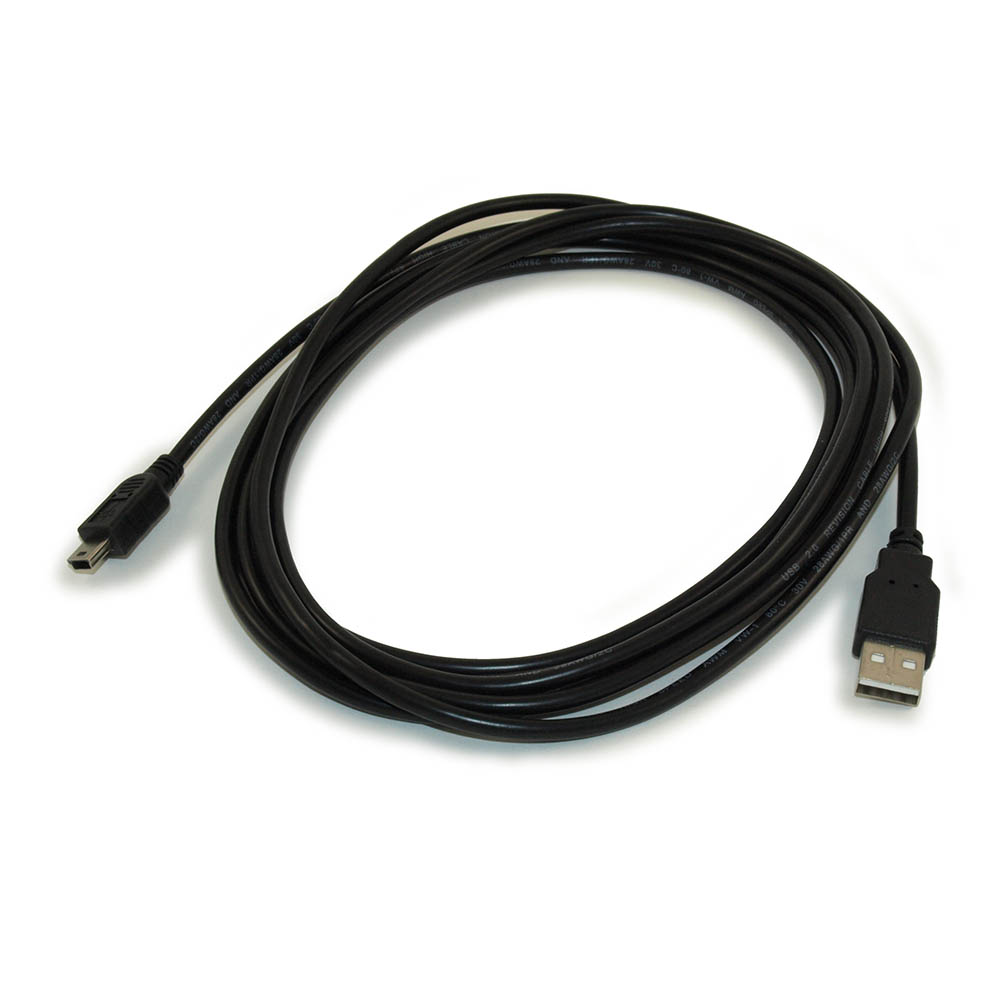

The USB A to MINI-B 5 pin cables are used by many cameras, GPS systems, and some older cellphones that use the MINI 5 pin connector type.
When comparing our cables to our competitors, please note the WIRE THICKNESS of 28AWG (1P) + 24AWG*2C. Most of our competitors use 28/28AWG cables resulting in signal loss, slower charging times, and overall amperage loss.
Cable Specifications:- Cable Conductors Gauge: 28AWG (1P) + 24AWG*2C

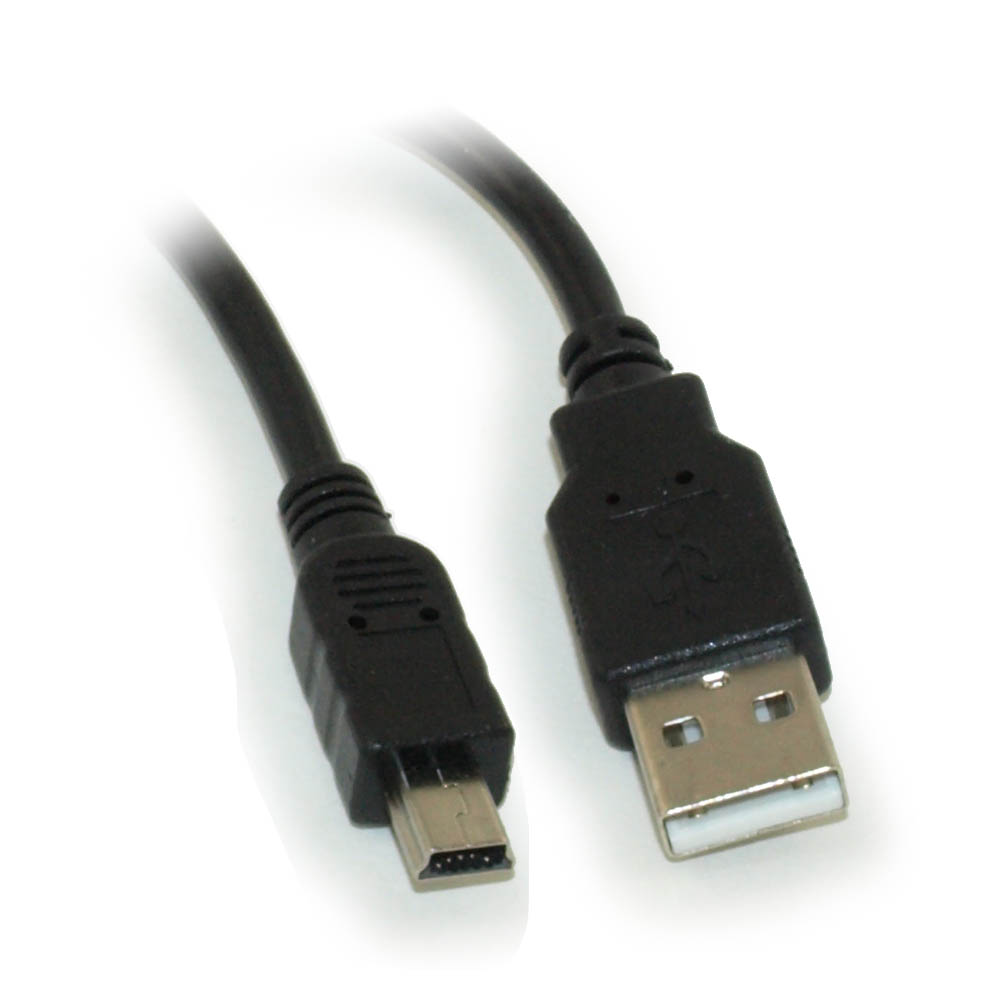

- Connectors: USB 2.0 Type A and USB Mini-B 5 pin
- Shielding and Jacket Type: Aluminum foil + drain wire 7/0.12mm pure copper
- Wire: CU (Pure Copper)
- RoHS Compliant
- Outer Cable Diameter: 4.5mm.
|
